Econ Barebone

Description

For those that are more the do it yourself type, the Econ series SATA Barebones Blu-ray/DVD/CD Tower Duplicator is your best option. Whether it’s for personal needs or to be offered through your business, as duplication equipment or services, the Econ Barebones offers an extremely low cost point. The Econ Barebones series allows the user to install whichever drives they want and provides more flexibility in the build and usage. Plus it is not only economical but also offers truly reliable duplication with an easy to use interface. The easy to operate control panel offers many advanced features such as; AutoCopy, Account Management, Auto Counter and much much more. These units are truly strong performing systems at a more affordable price point to meet the users growing demands without exceeding their budget.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Load and Copy Supported:
    Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive
  3. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  4. Multi-format duplication:
    Able to duplicate Blu-ray**, HD DVD**, DVD, CD and upgradeable for future drive and media applications.
  5. Largest manual tower range
    1 to 1 up to 1 to 11
  6. Copy CD+G format **:
    Able to make back-up copies of CD+G format discs
  7. Creates mix compilation CD+G Disc **:
    Able to compile multiple CD+G tracks onto a single disc from multiple sources.
  8. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  9. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  10. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request. (Chinese and Arabic available upon request)
Additional Features:
  1. AutoCopy feature:
    Fast duplication without pressing any buttons.
  2. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  3. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  4. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  13. Supports both Disk-at-Once and Track-at-Once modes
  14. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  15. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  16. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  17. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.
  18. Optional External USB 2.0/Firewire IEEE 1394 connection (Requires separate Add-ON, not included with controllers):
    Able to connect specific drives to a computer to generate a master disc for duplication.
**Available only on specific models.
**Ability to copy Blu-ray, HD DVD, and CD+G format depends on whether the writer drive supports those formats.

Model
Econ Series Bare Bone DVD/CD Stand-Alone Manual Tower Duplicator
Operating Type
Stand-alone
Target
3 Bay (1 to 1) up to 13 Bay (1 to 11)
Hard Drive Support
All SATA format Hard Drive
Display
20 x 2 LCD
Buffer Memory
3Bay - 64MB, 5Bay & above - 128MB
Language Support

English, Spanish, French, German, Italian, Japanese, and more
(Chinese and Arabic can be ordered on request)
Partition Naming
Up to 8 characters per partition
Account Management
32 users (Standard License) or 64 users (Premium License)
Auto Counter
Up to 9999 per Title
Load & Copy Support
Yes
Burn Proof Support
Yes
Power Supply
Input : 90 ~ 240 V, Up to 500 WATT max*
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL


*The power supply will differ based on the number of targets.

Target MPN (Black) Actual Size Single Packing

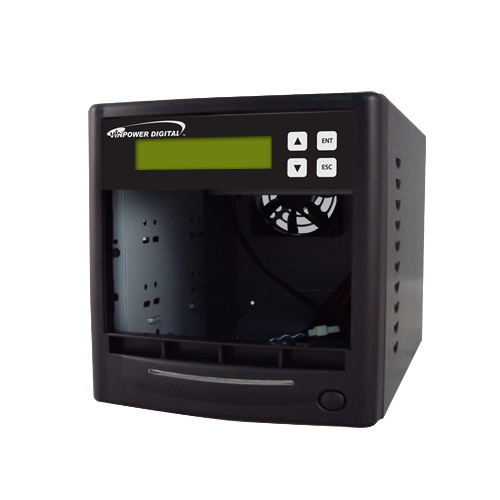

3 BBECON-3B-BK Size:
W 8" x D 11" x H 8"
(20 x 28 x 20 cm)

Weight:
10 lbs (3.6 kg)		 Size:
W 11" x D 15" x H 11"
(28 x 38 x 28 cm)

Weight:
11 lbs (5 kg)

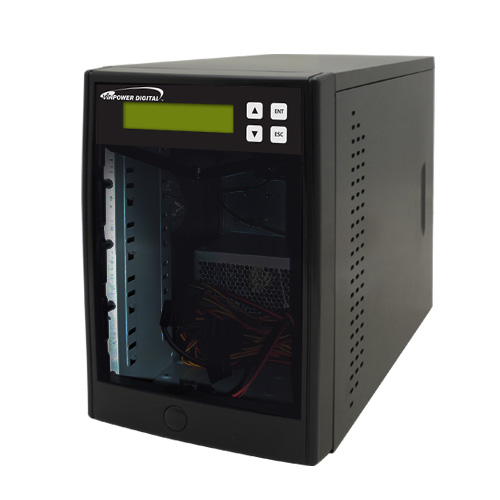

5 BBECON-5B-BK Size:
W 7" x D 14.5" x H 10.5"
(17.8 x 36.8 x 26.6 cm)

Weight:
9 lbs (4 kg)		 Size:
W 11" x D 20" x H 15"
(27.9 x 50.8 x 38.1 cm)

Weight:
14 lbs (6.4 kg)

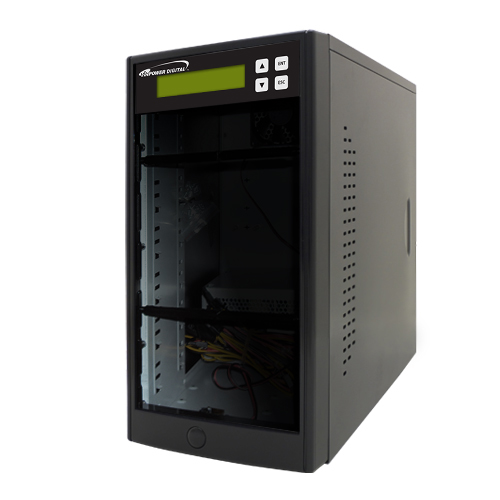

7 BBECON-7B-BK Size:
W 7" x D 14.5" x H 13.8"
(17.8 x 36.8 x 35 cm)

Weight:
10 lbs (4.5 kg)		 Size:
W 18" x D 19" x H 11.5"
(45.7 x 48.2 x 29.2 cm)

Weight:
16 lbs (7.3 kg)

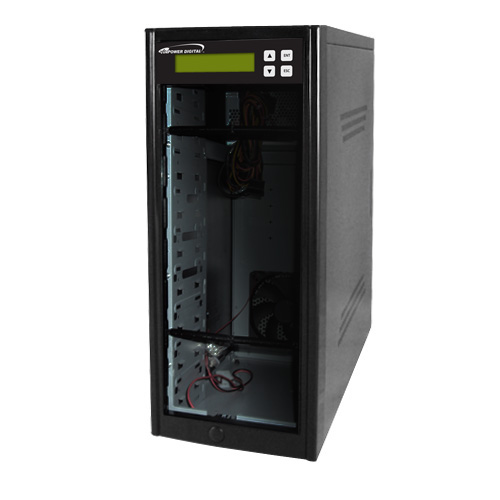

9 BBECON-9B-BK Size:
W 7.5" x D 16.8" x H 17.5"
(19 x 42.6 x 44.4 cm)

Weight:
12 lbs (5.4 kg)		 Size:
W 11.5" x D 21.5" x H 22.5"
(29.2 x 54.6 x 57.1 cm)

Weight:
19 lbs (8.6 kg)
13 BBECON-13B-BK Size:
W 7.5" x D 16.8" x H 24.5"
(19 x 42.6 x 62.2 cm)

Weight:
20 lbs (9.1 kg)		 Size:
W 13" x D 22.5" x H 31"
(33 x 57.1 x 78.7 cm)

Weight:
28 lbs (12.7 kg)
