Vinpower Digital Shark Casing Barebone

Description

When you want to offer your customers the best manual tower duplicator in the industry, the SharkCopier is your top solution. The best way to provide the SharkCopier line in your region is to purchase the "Bare Bones" version where we provide our technically advanced and extremely easy to use controller pre-installed within our unique high quality aluminum casing with our advanced power supply. In purchasing the "Bare Bone" system, you're able to secure the best duplicator on the market at a fraction of the price. Since the drives are the only component we do not manufacturer, it's easier for you to do all RMA with a local distributor or manufacture. This enables the seller to secure and install the drives locally.

Whether you're looking for a very simple duplicator that just copies directly from disc to disc or you want to utilize our market leading advance features such as account management, auto counter, partition naming, load and copy, and so much more, the SharkCopier duplicator is for you. The SharkCopier produces the highest quality duplications at the fastest duplicating speeds. Plus, at a very affordable price, the SharkCopier is the smart choice!

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Load and Copy Supported:
    Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive
  3. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  4. Multi-format duplication:
    Able to duplicate Blu-ray**, HD DVD**, DVD, CD and upgradeable for future drive and media applications.
  5. Largest manual tower range
    1 to 1 up to 1 to 15
  6. Industry leading 256MB buffer memory *:
    Keeps all drives burning without pausing (known as buffer underrun) for the most stable and reliable high speed duplication - The higher the memory buffer the less likely to encounter buffer underrun errors.
  7. Copy CD+G format **:
    Able to make back-up copies of CD+G format discs
  8. Creates mix compilation CD+G Disc **:
    Able to compile multiple CD+G tracks onto a single disc from multiple sources.
  9. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  10. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  11. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request. (Chinese and Arabic available upon request)
Additional Features:
  1. AutoCopy feature:
    Fast duplication without pressing any buttons.
  2. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  3. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  4. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Aluminum Case used to provide a highly functional and attractive exterior:
    Duplicator casing available in metallic silver or midnight black aluminum casing.
  7. Fast Key Support:
    4 fast keys for faster operations.
  8. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  9. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  10. Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  11. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  12. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  13. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  14. Supports both Disk-at-Once and Track-at-Once modes
  15. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  16. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  17. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  18. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.
  19. Optional External USB 2.0/Firewire IEEE 1394 connection (Requires separate Add-ON, not included with controllers):
    Able to connect specific drives to a computer to generate a master disc for duplication.
**Available only on specific models.
**Ability to copy Blu-ray, HD DVD, and CD+G format depends on whether the writer drive supports those formats.

Model
Bare Bone SharkCopier DVD/CD Stand-Alone Manual Tower Duplicator
Operating Type
Stand-alone
Target
2 Bay (1 to 1) up to 16 Bay (1 to 15)
Hard Drive Support
All SATA format Hard Drive
Display
20 x 2 LCD
Buffer Memory
8Bay & Below - 128MB, 10Bay & above - 128MB or 256MB
Language Support

English, Spanish, French, German, Italian, Japanese, and more
(Chinese can be ordered on request)
Partition Naming
Up to 8 characters per partition
Account Management
32 users (Standard License) or 64 users (Premium License)
Auto Counter
Up to 9999 per Title
Load & Copy Support
Yes
Burn Proof Support
Yes
Power Supply
Input : 90 ~ 240 V, Up to 500 WATT max*
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL



*The power supply will differ based on the number of targets.


How the SharkCopier Aluminum Case extends the life of the DUPLICATOR drives

The 2 most dangerous elements for any drive are heat and dust. While the drives are in use, they generate a significant amount of heat. To further prevent the drives from overheating and burning out, a fan is needed to pull the hot air out and suck in fresh air to cool the drives down. The problem is, the fresh air has to enter the duplicator through the front of the unit going directly through the drives. This causes the second major threat to a drive, the culmination of dust on the laser head. As the air is sucked through the front of the duplicator, dust particles will collect inside the drives and cloud the laser head. The laser head is the optical nerve center of the drive and conducts the process of burning onto the discs. As dust accumulates, it makes it harder for the laser to perform, forcing the drive to work harder and reducing the lifespan of the drive. The SharkCopier is specially designed with a special "gill" venting system on each side of the case to allow the air flow into the machine without passing through the drive face. This eliminates approx. 80% of the harmful dust from entering into the drive itself and landing on the laser head. To further prevent dust from entering the drives, the SharkCopier is equipped with exterior drive door covers to block harmful dust particles. In addition, the SharkCopier case is made out of aluminum, which diffuses harmful heat up to 3 times faster than a standard steel case. By decreasing the amount of heat and dust from disrupting the capabilities of the drives, the SharkCopier can extend the life of the drives by an average of 20% ~ 30%.


Vinpower Digital has developed the first true standalone duplicator which can offer embedded copy protection. The unique Copy Protection Software (CPS) can embed a proprietary copy protection encryption into any DVD video master through a PC which can then be transferred onto the Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since CPS is software based as apposed to hardware based, there are no issues with compatibility with players like similar models on the market. In addition, CPS protects against both duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

In today’s savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn’t be restricted in the number of units you can sell because you can’t afford the high price of replicated copy protection. Instead by using Vinpower Digital’s CPS, you can feel secure at a fraction of the expense and time with no minimum or maximum quantities required.

How Copy Protection Works:
1. Load the supplied CPS software onto a suitable PC.
2. Plug in the CPS USB dongle with activated licenses into your PC’s USB socket.
3. Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
4. Transfer the new copy protected master content from the PC onto an enabled duplicator via USB/Copy Connect or LAN/Network connectivity
5. Load blank DVD recordable discs into the duplicator’s writer drive(s) then locate the transferred file through the duplicator’s menu keys from the internal hard drive
6. Initiate the copy process and when the finished discs all successfully copy, these discs will have the copy protection already embedded.

System Requirements:
Operating Systems


Windows® 7 (32 Bit, 64 Bit),
Windows Vista® (32 Bit, 64 Bit),
Windows XP (32 Bit, 64 Bit)
Minimum System Requirement for PC
CPU: Pentium 4, 2.4GHz; RAM: 512MB; 1 x Hi-Speed USB 2.0 Port
Administrator User Privilege for above Operation Systems

Target Maximam Capacity MPN (Silver)
 MPN (Black) Actual Size Single Packing Double Packing
2 UP TO 2 Drives BBVP-2B-Sil BBVP-2B-BK Size:
W 7" x D 12" x H 8.5"
(17.8 x 30.5 x 16.5 cm)

Weight:
6 lbs (2.7 kg)		 Size:
W 10.5" x D 15.5" x H 11.5"
(26.7 x 39.4 x 29.2 cm)

Weight:
6.4 lbs (2.91 kg)		 Size:
W 16" x D 13" x H 12"
(40.6 x 33 x 30.5 cm)

Weight:
8 lbs (3.64 kg)

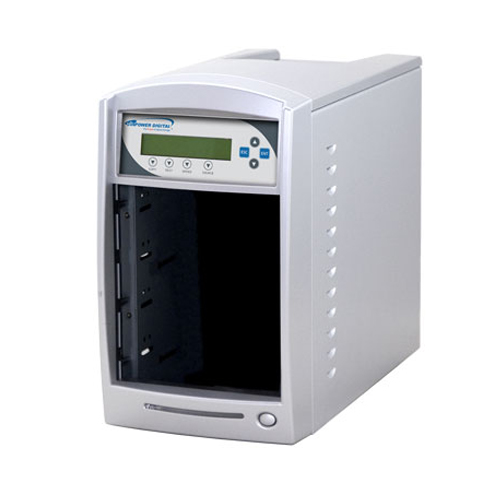

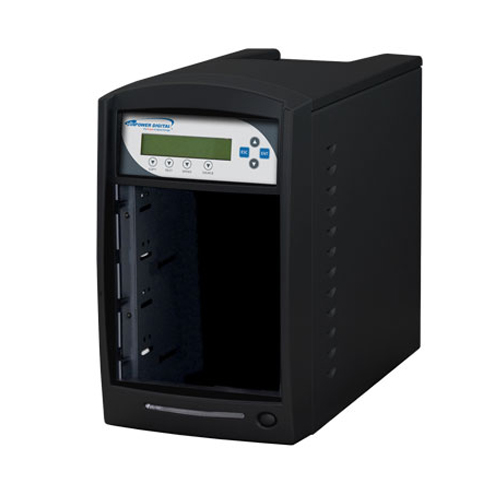

4 UP TO 4 Drives BBVP-4B-Sil BBVP-4B-BK Size:
W 7.5" x D 13.5" x H 12"
(18.9 x 34 x 30.2 cm)

Weight:
8 lbs (3.63 kg)		 Size:
W 12" x D 18.5" x H 16.5"
(30.24 x 40.7 x 36.3 cm)

Weight:
11.5 lbs (5.22 kg)		 Size:
W 18" x D 18" x H 20"
(45.4 x 45.4 x 50.4 cm)

Weight:
13.5 lbs (6.13 kg)
6 UP TO 6 Drives BBVP-6B-Sil BBVP-6B-BK Size:
W 7.5" x D 21" x H 15"
(19 x 53 x 38 cm)

Weight:
11 lbs (5 kg)		 Size:
W 12" x D 25" x H 20"
(30.5 x 63.5 x 51 cm)

Weight:
17 lbs (7.7 kg)		 Size:
W 16" x D 29" x H 23"
(41 x 73.4 x 58.2 cm)

Weight:
23 lbs (10.4 kg)

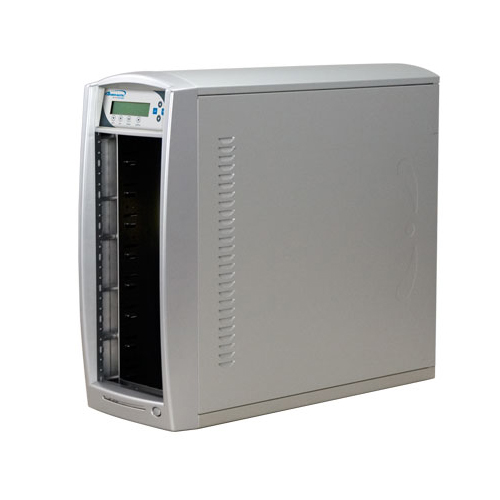

8 UP TO 8 Drives BBVP-8B-Sil BBVP-8B-BK Size:
W 7.5" x D 21" x H 18.5"
(19 x 53 x 46.8 cm)

Weight:
12.5 lbs (5.6 kg)		 Size:
W 12" x D 25" x H 24"
(30.5 x 63.5 x 61 cm)

Weight:
19 lbs (8.6 kg)		 Size:
W 16" x D 29" x H 27"
(41 x 73.4 x 68.3 cm)

Weight:
26.5 lbs (12 kg)

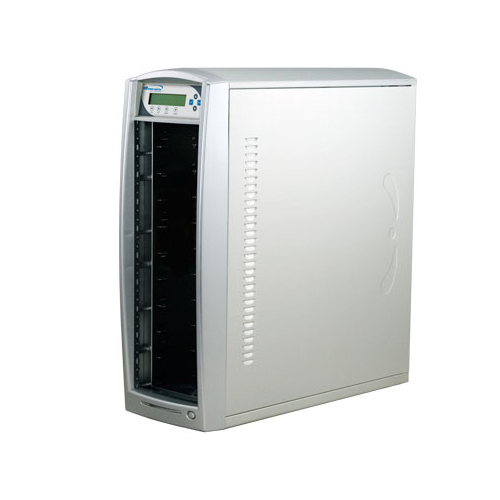

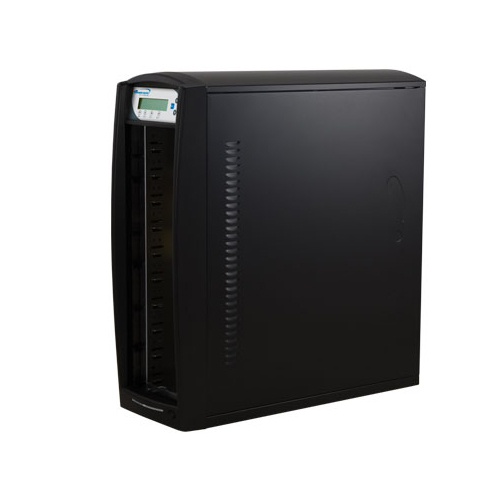

10 UP TO 10 Drives BBVP-10B-Sil BBVP-10B-BK Size:
W 7.5" x D 21" x H 22"
(19 x 53 x 55.6 cm)

Weight:
14.5 lbs (6.6 kg)		 Size:
W 12" x D 25" x H 27"
(30.5 x 63.5 x 69 cm)

Weight:
22.5 lbs (10.2 kg)		 Size:
W 16" x D 29" x H 30"
(41 x 73.4 x 76 cm)

Weight:
30.5 lbs (13.8 kg)

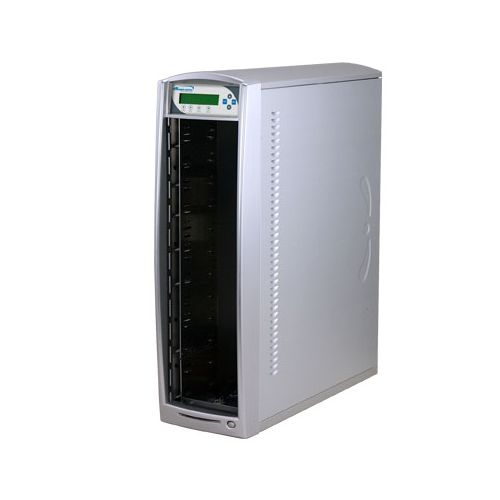

12 UP TO 12 Drives BBVP-12B-Sil BBVP-12B-BK Size:
W 7.5" x D 21" x H 26"
(19 x 53 x 66 cm)

Weight:
16.5 lbs (7.5 kg)		 Size:
W 12" x D 25" x H 30"
(31 x 63.3 x 76 cm)

Weight:
30 lbs (13.6 kg)		 Size:
W 16" x D 29" x H 34"
(39.4 x 73.4 x 86.7 cm)

Weight:
33.5 lbs (15.2 kg)

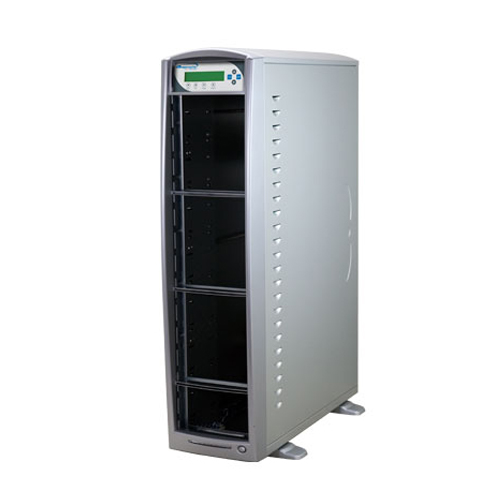

14 UP TO 14 Drives BBVP-14B-Sil BBVP-14B-BK Size:
W 7.5" x D 21" x H 30"
(19 x 53 x 76.2 cm)

Weight:
18.5 lbs (8.38 kg)		 Size:
W 12" x D 26" x H 35"
(30.4 x 66 x 89 cm)

Weight:
34 lbs (15.4 kg)		 Size:
W 16" x D 29" x H 38"
(40.6 x 73.4 x 96.5 cm)

Weight:
37 lbs (16.76 kg)

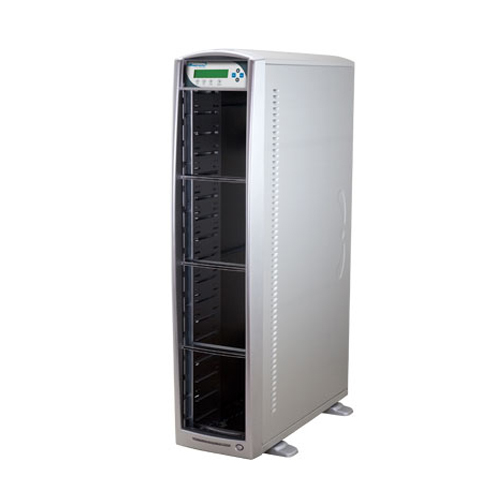

16 UP TO 16 Drives BBVP-16B-Sil BBVP-16B-BK Size:
W 7.5" x D 21" x H 33"
(19 x 53 x 83.9 cm)

Weight:
20 lbs (9.06 kg)		 Size:
W 12" x D 26" x H 38"
(30.4 x 66 x 96.6 cm)

Weight:
37 lbs (16.76 kg)		 Size:
W 16" x D 29" x H 41"
(40.6 x 73.4 x 104 cm)

Weight:
40 lbs (18.12 kg)
