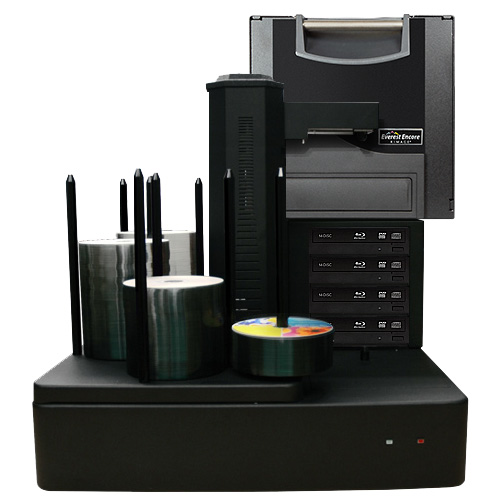

Cronus Plus Blu-ray/DVD/CD Publishers with Color Thermal Printer - 4 Drives

Description

For those that need high speed production for their disc duplication and printing needs, the Cronus is the perfect equipment. With its asynchronous recorders and high speed color thermal printer, the Cronus can quickly and accurately copy and print all assigned jobs. The color thermal printer creates perfect reproductions of the original artwork that won’t smear, bleed, or fade. Plus with the Networking feature, the system can have jobs sent from anyone within an office connected to the network to save time and money. The Cronus systems are available with either standard CD/DVD drives or Blu-ray drives.



Basic Operations:
  1. Large Disc Capacity:
    Offers up to 500 discs capacity
  2. Multi-drive duplication:
    4 Blu-ray/CD/DVD recorders
  3. Embedded PC:
    System does not require an external PC for operation – all applications are self-contained utilizing an internal PC motherboard and operating system.
  4. Flexible operation options:
    Works as an auto-printer, auto-duplicator, or as a complete publishing system for duplication and printing
  5. All-in-one Disc Publisher system:
    Available with monitor, keyboard and mouse, for a nominal fee, so the system is ready to use out of the box
System Advantages:
  1. DVD Video and Blu-ray* Video Copy Protection Available: Able to create copy protected DVD Video or Blu-ray* Video copies from an original master to add a strong protection against unauthorized duplication or ripping of the users video content.
  2. Automated Robotic Operation: System runs duplication and printing applications through a robotic interface allowing for hands free lights-out operation.
  3. Copy Protection Capable: Optional feature available to provide DVD & Blu-ray* video copy protection to greatly diminish the ability for unauthorized duplication and ripping proprietary content
Printing Related Features:
  1. World’s only and fastest full color thermal disc printer:
    Up to 68 discs per hour
  2. Better Disc-Handling:
    Able to hold the discs from the center hub therefore providing the most accurate disc-handling.
  3. Supports 3rd party design software:
    it supports the most popular graphics files(such as .pdf, .prn, .std, etc. files)
  4. Supports Serial # / Barcode Printing:
    Able to generate unique bar code or serial numbers printed on each individual disc
  5. Quick Text Printing (Text Overlapping):
    Able to add quick text printing in addition to provided label artwork
Network Features:
  1. Network accessible:
    Able to access software and load jobs from anywhere within a given network
  2. Built in 1GB LAN:
    For fast and reliable Network accessibility
  3. No added License Fee for Network application:
    Can allow any number of authorized users to access and utilize the client software
  4. Web Based Administration:
    Operating System able to be accessed and corrected through MIS remote online support
Ripping Support:
  1. Provides Data Ripping:
    All files and folder structure is cloned to your hard drive
  2. Supports Audio Ripping:
    Able to rip music files onto a PC hard drive
  3. Supports Archival Back-up:
    Capable of operating as an archival rip station for important back-up of content onto optical discs or from discs onto a server or HDD
  4. Supports Job Queues:
    Provides the ability to queue multiple jobs for unattended operation of multiple different duplication and or printing assignments
  5. Supports Multiple Job Queues:
    System is able to maintain multiple job queues for several users so that each individual user can maintain their own dupe and print files for use at a later date
  6. Multi-master read-in support:
    Users can read-in a stack of masters and create ISO images
Software Features:
  1. Publishing Software Provided:
    The unit comes standard with the powerful BPR2000 software which supports the broadest set of features and capabilities
  2. Windows Based Operating System:
    The system includes a licensed Microsoft Windows OS along with a powerful Intel dual core processor for faster operation
  3. Flexible Programing:
    Due to Windows based OS, users can easily design their own software through the Cronus system
  4. Command line support:
    Able to integrate customer's own software to operate loader – allows customized API software support
  5. Software update Available:
    Able to update proprietary software and firmware for future functionality
  6. Extensive Log File:
    Maintains an extensive log file of the systems operations for easier troubleshooting if needed ( All jobs are auto logged)
  7. System error notification:
    System will email listed users notifications when jobs have been completed or to report any potential error conditions that may arise
Robotics Operation:
  1. Hi-speed 24/7 operation:
    Able to perform constantly 24 hours a day, 7 days a week without fear of overheating with quick reliable robotic operation.
  2. Friendly Interface:
    All job functions and system alerts operate in an easy to use and similar user interface for convenience and ease of use
*Blu-ray video copy protection to be added in the future and only available on Blu-ray equipped models.


Basic Operation Specifications:
Model
CRONUS-BD-S4T-THM-PL-BK
Model Type
Publishing system with embedded PC
Number of Recorder Drives
4

Max Disc Capacity
500 discs
Network Capable
Yes
Memory
4 GB
Hard Drive
2 TB SSD
Operating System
Licensed Windows OS with powerful Intel Dual Core Processor

Print Function Specifications:
Printing Method
Thermal Retransfer
Ribbon
CMY
Black
Print Resolution
600 dpi
Printer Ribbons
Ribbon(s) available separately

Media Type
Standard 120mm Thermal Printable-CD and DVD discs
Print Speed
60 Seconds
Interface
USB 2.0
Power Voltage
100 - 240 Vac; 50 – 60 Hz (manual switch)
Printer dimension
(W x D x H)
45 lbs
9.5" x 14.8" x 9.7"

Recorder Specifications:
Featured recorder
12x SATA Blu-ray/DVD/CD Writer(s)
Maximum Copy Speed
BD-R: 12x BD-RE: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD+R DL: 8x DVD-R DL: 8x
CD-R: 40x CD-RW: 24x
Formats Supported


BD: BD-R, BD-R DL, BD-RE, BD-RE DL
DVD: DVD-R/+R SL, DVD-R/+R DL, DVD-RW/+RW, DVD-RAM
CD: CD-R, CD-RW



Software Specifications:
Publishing software
BPR2000 Labeling and Burning Publishing Software
Software Included
Cronus BPR2000 Labeling and Burning Software

Product Details:
Warranty

*1 year parts & labor against manufacturer defect. Warranty excludes physical damage or defect due to neglect or deliberate damage caused by the user.
Firmware Upgradeable
Yes
Supports Copy
Protection
Yes

Power Requirements
100-240 VAC, 60/50 Hz, 3.7-3.9/2.9-3.1 AMP, 500 watt Maximum, manual switching
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital


Vinpower Digital has developed the first true standalone duplicator which can offer embedded copy protection. The unique Copy Protection Software (CPS) can embed a proprietary copy protection encryption into any DVD video master through a PC which can then be transferred onto the Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since CPS is software based as apposed to hardware based, there are no issues with compatibility with players like similar models on the market. In addition, CPS protects against both duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

In today’s savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn’t be restricted in the number of units you can sell because you can’t afford the high price of replicated copy protection. Instead by using Vinpower Digital’s CPS, you can feel secure at a fraction of the expense and time with no minimum or maximum quantities required.

How Copy Protection Works:
1. Install the supplied CPS software onto a suitable PC.
2. Plug in the CPS USB dongle with activated licenses into your PC's USB socket.
3. Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
4. Transfer the new copy protected master content image file from the PC onto an enabled duplicator, like Cronus, via external USB storage device or network.
5. Fill in the blank recordable DVD onto the input bin.
6. Start a new "Burn Image" job on Cronus system with the new copy protected master content image file.

System Requirements:
Operating Systems


Windows® 7 (32 Bit, 64 Bit),
Windows Vista® (32 Bit, 64 Bit),
Windows XP (32 Bit, 64 Bit)
Minimum System Requirement for PC
CPU: Pentium 4, 2.4GHz; RAM: 512MB; 1 x Hi-Speed USB 2.0 Port
Administrator User Privilege for above Operation Systems

Target Disc Capacity
 MPN Actual Size Single Packing Double Packing
4 500 CRONUS-BD-S4T-THM-PL-BK Size:
W 24" x D 22" x H 18"
(30 x 40 x 24 cm)

Weight:
83 lbs (37.7 kg)		 Package 1 (Robot):
Size:
W 24" x D 22" x H 18"
(61 x 55.9 x 45.7 cm)

Weight:
36 lbs (16.3 kg)

Package 2 (Printer):
Size:
W 20" x D 14" x H 18"
(50.8 x 35.6 x 45.7 cm)

Weight:
51 lbs (23.1 kg)
 Package 1 (Robot):
Size:
W 26" x D 25" x H 21"
(66 x 63.5 x 53.3 cm)

Weight:
38 lbs (17.2 kg)

Package 2 (Printer):
Size:
W 20" x D 14" x H 18"
(50.8 x 35.6 x 45.7 cm)

Weight:
51 lbs (23.1 kg)


Extended Warranty for Cronus 2nd Year (Including Thermal Printer)
Part Number Description
EW2CronusBdTP 2nd Year Extended Warranty for Cronus Blu-ray Series (Including Thermal Printer)


Extended Warranty for Cronus 2nd Year & 3rd Year (Including Thermal Printer)
Part Number Description
EW3CronusBdTP 2nd & 3rd Year Extended Warranty for Cronus Blu-ray Series (Including Thermal Printer)
