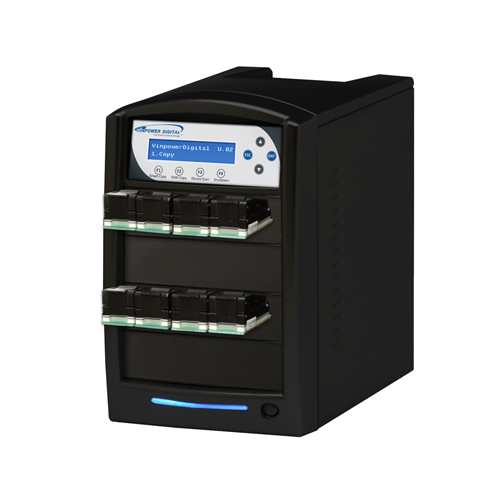

eMMCShark Duplicator

Description

Mobile consumer electronic items like tablets, eBooks, smartphones, MP3 players, digital cameras, and USB drives, just to name a few, are growing in both demand and the number of companies supplying them. These items have to be small enough to be convenient to carry around and thin enough to take up as little space as possible. In order to do so, the programming IC chips used to program and operate these devices have to be equivalently small and thin as well. The one thing that all of these devices and many like them have in common is the fact that they all use a form of flash memory chips such as the eMMC chips. These chips are small enough to fit in a device as small as a cell phone, but yet have enough capacity to contain a large amount of data for the device’s operating systems.

* Adapter(s) required for eMMC v4.3/4.4 duplication will be provided

Key Features:
  1. High Capacity:
    Up to 15 data sources independent of the target slot.
  2. eMMC Support:
    Supports MMC 4.3/4.4/4.41 eMMC compatible memory card.
  3. Supports eMMC the General Purpose Partition:
    Enhanced User Area copy and verify function.
  4. True Asynchronous Duplication:
    Able to copy any size master data onto multiple sources asynchronously (independently) without sacrificing duplication speed or quality for faster and more reliable duplication.
  5. Fast copy and verification:
    Speeds of up to 33 MB/s.
  6. Smart copy feature:
    This feature is used to quickly copy all accessible content within the supported files systems contained on the eMMC/MMC device.
  7. Supports all data Formats with bit by bit duplication.
  8. Future functions upgradeable through firmware:
    Duplicator is able to be upgraded by future firmware updates.
  9. Replaceable eMMC/SD card slot module available.

Model
eMMC Duplicator
Operating Type
Stand-alone
Target
11, 15
Buffer Memory
Up to 256MB
Account Management
32 users (Standard License) or 64 users (Premium License)
Smart Copy
Yes
Auto Counter
Yes
File System Supported
FAT 16/32, exFAT, NTFS, ext2/3/4
Max USB Size Supported
2TB

Language Support
English, Spanish, French, Japanese & more. Chinese can be added upon request.
Display
20 x 2 Blue LCD
Status LED
Green/Red LED on each port
Color
Black
Maximum Read Speed
33 MB/Sec≈2GB/Min
Maximum Write Speed
31 MB/Sec≈2GB/Min/Sec
Flash Device Supported
eMMC/MMC v4.3/4.4
Firmware Upgradeable
Yes
Power Supply
Input : 90 ~ 240 V AC
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL
Manufacture
Vinpower Digital


Throughput Capacity Per Hour:
Target 11 15
 eMMC size: 512MB* 1540 2100
 eMMC size: 1 GB* 770 1050
 eMMC size: 2 GB* 385 525
 eMMC size: 4 GB* 187 255

*at 20MB/Sec duplication speed
