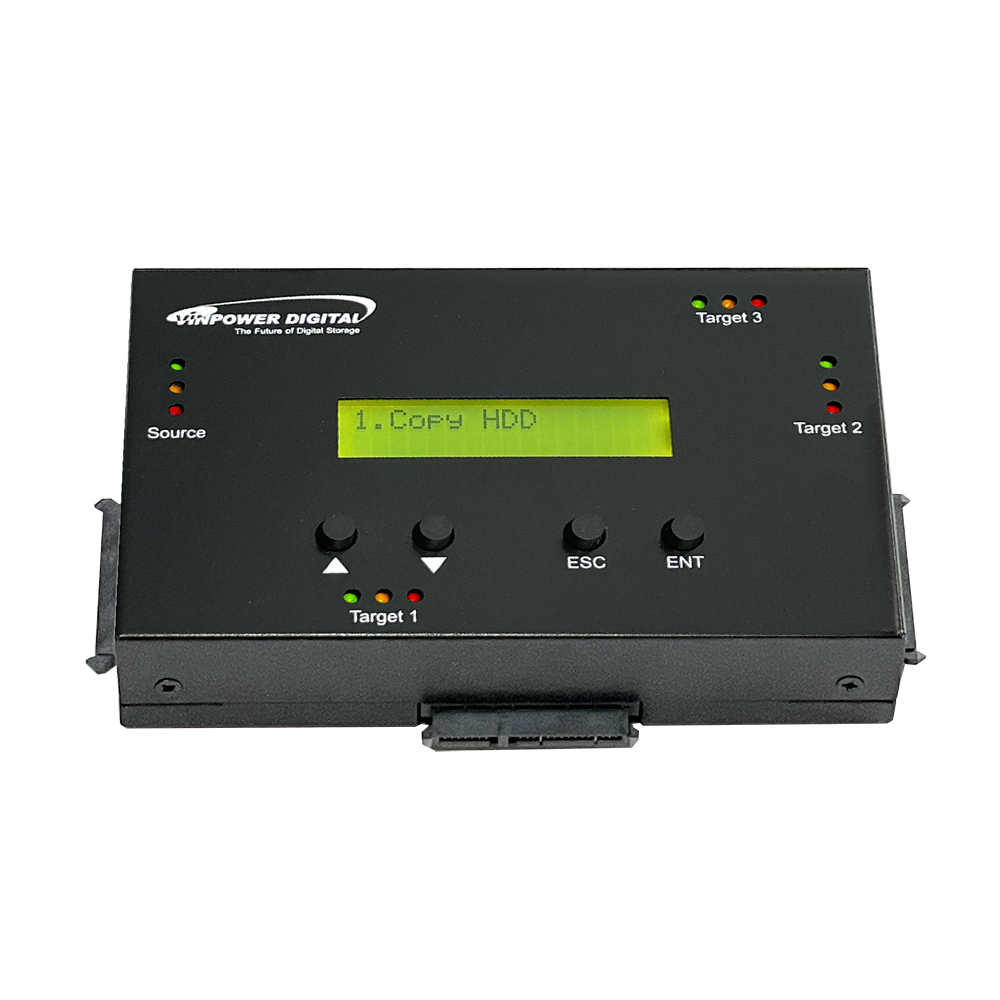

HDDMINI Duplicator

Description

The Vinpower Digital standalone HDDMINI 2 target hard drive duplicator is the perfect solution for those that need to make back-up or residual clones of their master hard drive (HDD) content. The sleek compact light portable construction of the HDDMINI allows the user to take it anywhere and make quick and reliable clones of nearly any HDD using virtually any OS platforms, such as Unix, Linux, Windows, or Macintosh. The HDDMINI supports the FAT16/32, extFAT, NTFS, and ext2/3/4 file systems. Using the HDDMINI gives you piece of mind that each HDD will be copied accurately and quickly for a no hassle, low cost alternative to performing this task 1 at a time through a PC. Plus, the fact that the HDDMINI is so easy to transport, you’ll never have to worry about leaving this indispensable IT tool behind.

Additionally, The HDDMINI performs the important Quick Erase and/or Full Erase options, but it can also erase the HDD up to the high government DoD 5220 standards which ensure there will be no trace of the content left behind.



Hardware Features:
  1. Small lightweight compact frame (about the size of a small tablet) for easy travel
  2. Optional CF Support with optional CF Interface Module Add-on
  3. Support of all SATA Interface, 1.5Gbps, 3.0Gbps, 6.0Gbps
  4. Industry Standard 90MB/s (5GB/min) Simultaneous Actual Transfer Speed
  5. 2.5" and 3.5" HDD/SSD Support
  6. Supports HDD sizes 3TB +: The HDDMINI can accurately copy very high capacity HDD's, including 3TB and larger, for long term archival storage or large capacity data files.

Software Features:
  1. Standalone Operation, No PC is required
  2. Simultaneous and Independent HDD operation
  3. DoD Certified HDD Erase Support
  4. Extensive Smart File system Support - Ext2, Ext3, Ext4, NTFS, exFAT, FAT16, FAT32, HFS+
  5. Auto Partition Layout Support
  6. Operation Progress Display during Duplication
  7. Read/Write Error Skip Support
  8. Account Management Support
  9. Future functions upgradeable through Firmware Update

Model
HDDMINI Hard Drive Duplicator
Operating Type
Stand-alone
Target
2 target: (7. Supports up to 2 drives at one time)
3 target: (7. Supports up to 3 drives at one time)
Buffer Memory
128MB DDR2
HDD Interface
SATA I & II (1.5G & 3.0G), SATA III (6.0G) Compatible
HDD Form Factor
3.5" and 2.5"
CF Support
Optional (with CF Interface Module Add-on)
HDD Hot Swap
Yes
Smart Copy
Yes
File System Supported
FAT16/32, exFAT, NTFS, ext2/3/4, HFS+
Maximum Read Speed
90MB/Sec*(5GB/min)
Maximum Write Speed
90MB/Sec*(5GB/min)
Max HDD Capacity
Greater than 3TB
Account Management
32 users (Standard License) or 64 users (Premium License)
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more(Chinese can be ordered on request)
Display
20 x 2 Blue LCD
Color
Black
Firmware Upgradeable
Yes
Power Supply
Input: 100-240V 50/60Hz Max 1.6A
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Manufacture
Vinpower Digital



Important Notice
  • *The actual reading/writing speed may vary depends on actual HDD device.


Target MPN Actual Size Single Packing
2 HDDMINIDUP-2 Size:
W 3.8" x D 5.70" x H 1.2"
(9.5 x 14.5 x 3 cm)

Weight:
0.97 lbs (0.44 kg)		 Size:
W 6.3" x D 8.5" x H 2.8"
(16 x 21.5 x 7 cm)

Weight:
1.94 lbs (0.88 kg)
3 HDDMINIDUP-3 Size:
W 3.8" x D 5.70" x H 1.2"
(9.5 x 14.5 x 3 cm)

Weight:
0.97 lbs (0.44 kg)		 Size:
W 6.3" x D 8.5" x H 2.8"
(16 x 21.5 x 7 cm)

Weight:
1.94 lbs (0.88 kg)
