HddShark Turbo Hard Drive Duplicator

Description

The Vinpower Digital standalone HDDShark Turbo hard drive duplicator is the perfect solution for those that need to make back-up or residual clones of the master hard drive (HDD) content. Available in multiple size configurations supporting reading and writing speeds up to a blazing fast speed of 150MB/sec, allows the user to make quick and reliable clones of nearly any HDD using virtually any OS platforms, such as Unix, Linux, Windows, or Macintosh . The HDDShark Turbo supports the FAT16/32, extFAT, NTFS, and ext2/3/4 file systems. Using the HDDShark Turbo gives you a piece of mind that each HDD will be copied accurately and quickly for a no hassle, low cost alternative to performing this task 1 at a time through a PC.

Additionally, The HDDShark Turbo performs the reliable Quick Erase and/or Full Erase option, but if can also erase the HDD up to the high government DoD 5220 standards which ensure there was no trace of the content left behind.

Hardware Features:
  1. Aluminum design with heat conductive grooves
  2. Optional CF Support with optional CF Interface Module Add-on
  3. Dedicated HDD Cooling Fan to prevent overheating
  4. Support of all SATA Interface, 1.5Gbps, 3.0Gbps, 6.0Gbps
  5. Industry Leading 150MB/s (9GB/min) Simultaneous Actual Transfer Speed
  6. Screw-Free Hot Swappable HDD Caddy Tray
  7. Safety HDD Tray Lock to prevent accidental HDD removal during operation
  8. Additional LED for HDD Power and HDD Activity, Fan Activity
  9. Power Control of individual HDD for complete HDD spin-down prior removal
  10. 2.5" and 3.5" HDD/SSD Support
  11. Supports HDD sizes 3TB +: The HDDShark can accurately copy very high capacity HDD’s, including 3TB and larger, for long term archival storage or large capacity data files.

Software Features:
  1. Standalone Operation, No PC is required
  2. Simultaneous and Independent HDD operation
  3. DoD Certified HDD Erase Support
  4. Extensive Smart File system Support - Ext2, Ext3, Ext4, NTFS, exFAT, FAT16, FAT32, HFS+
  5. Auto Partition Layout Support
  6. Operation Progress Display during Duplication
  7. Read/Write Error Skip Support
  8. Account Management Support
  9. Future functions upgradeable through Firmware Update

Model
HddShark Turbo Hard Drive Duplicator
Operating Type
Stand-alone
Target
2 , 5 , 8, 11, 14
Buffer Memory
256MB DDR2
HDD Interface
SATA I & II (1.5G & 3.0G), SATA III (6.0G) Compatible
HDD Form Factor
3.5" and 2.5"
CF Support
Optional (with CF Interface Module Addon)
HDD Hot Swap
Yes
Smart Copy
Yes
File System Supported
FAT16/32, exFAT, NTFS, ext2/3/4, HFS+
Maximum Read Speed
120MB/Sec*(7GB/min)
Maximum Write Speed
120MB/Sec*(7GB/min)
Max HDD Capacity
9999TB
Account Management
32 users (Standard License) or 64 users (Premium License)
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more(Chinese can be ordered on request)
Display
20 x 2 Blue LCD
Color
Black
Firmware Upgradeable
Yes
Power Supply
Input : 90 ~ 240 V, Up to 500 WATT max
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC/CE, ROHS
Manufacture
Vinpower Digital



Important Notice
  • *The actual reading/writing speed may vary depends on actual HDD device.

Target MPN
 Actual Size Single Packing Double Packing

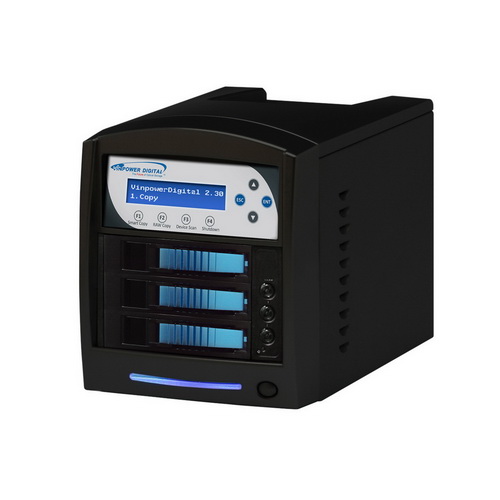

2 HDDSharkTB-2T-BK Size:
W 7" x D 12" x H 8.5"
(17.8 x 30.5 x 21.6 cm)

Weight:
8.4 lbs (3.8 kg)		 Size:
W 10 1/2" x D 15" x H 11 1/2"
(26.7 x 38.1 x 29.2 cm)

Weight:
9 lbs (4 kg)		 Size:
W 16" x D 13" x H 12"
(40.6 x 33 x 30.5 cm)

Weight:
10.5 lbs (4.8 kg)
5 HDDSharkTB-5T-BK Size:
W 7.5" x D 13.5" x H 12"
(19 x 334 x 30.2 cm)

Weight:
14 lbs (6.3 kg)		 Size:
W 12" x D 17" x H 17"
(30.5 x 43.2 x 43.2 cm)

Weight:
17 lbs (7.7 kg)		 Size:
W 19" x D 19" x H 15"
(48.3 x 48.3 x 38.1 cm)

Weight:
19 lbs (8.6 kg)

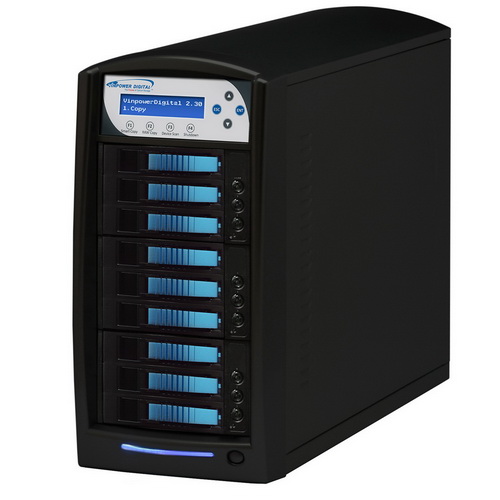

8 HDDSharkTB-8T-BK Size:
W 7.5" x D 21" x H 15"
(19 x 53 x 38 cm)

Weight:
17.5 lbs (7.9 kg)		 Size:
W 12" x D 25" x H 20"
(30.5 x 43.2 x 43.2 cm)

Weight:
23.5 lbs (10.7 kg)		 Size:
W 16" x D 29" x H 27"
(41 x 73.4 x 68.3 cm)

Weight:
29.5 lbs (13.4 kg)

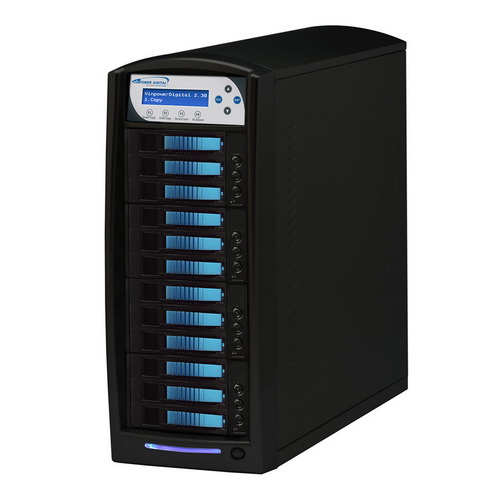

11 HDDSharkTB-11T-BK Size:
W 7.5" x D 21" x H 18.5"
(19 x 53 x 46.8 cm)

Weight:
25 lbs (11.4 kg)		 Size:
W 12" x D 25" x H 24"
(30.5 x 63.5 x 61 cm)

Weight:
31 lbs (14.1 kg)		 Size:
W 16" x D 29" x H 27"
(41 x 73.4 x 68.3 cm)

Weight:
36 lbs (16.3 kg)

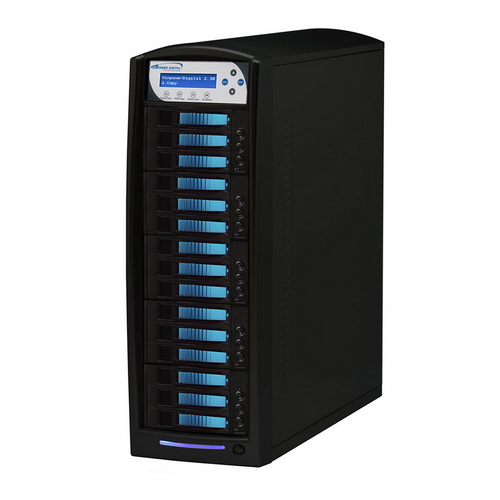

14 HDDSharkTB-14T-BK Size:
W 7.5" x D 21" x H 22"
(19 x 53 x 55.6 cm)

Weight:
28 lbs (11.4 kg)		 Size:
W 12" x D 25" x H 27"
(30.5 x 63.5 x 69 cm)

Weight:
35 lbs (15.9 kg)		 Size:
W 16" x D 29" x H 30"
(41 x 73.4 x 76 cm)

Weight:
40 lbs (18.2 kg)
