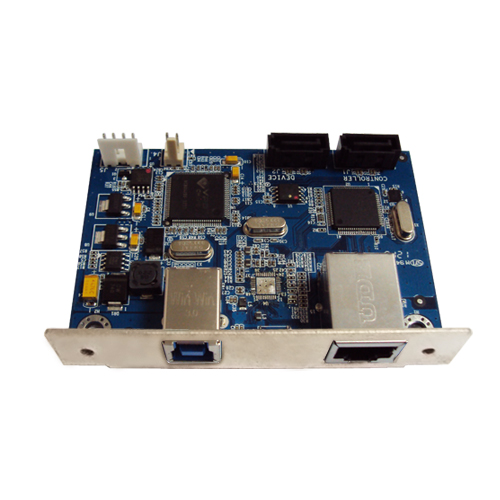

Network External Card

Description

The Network external card can be connected to compatible controllers so that files can be transferred to the duplicator through any PC on a given network. This allows users to store and make quick copies from data stored on any PC on a network without the hassle of creating the master discs and taking that disc to the duplicator every time they need to make copies. Plus with the added USB 3.0 connection (backwards compatible with USB 2.0), the user can transfer files directly from a PC to the duplicator's HDD or the duplicator's writer drive(s) through the controller for the same or similar affect.



Features:

  1. Transfer files from any PC within an internal Network directly to the duplicator:
    Connects a duplicator to the company's internal network by LAN/Ethernet connection and transfer the image or file(s) that need to be duplicated directly to the duplicator. No longer need to burn a master disc to initiate the duplication process.
  2. Connectivity for a PC:
    Able to connect the HDD or an optical disc drive (ODD) to a computer through the USB 3.0 connection to easily create a master disc.
  3. Faster Transfer rate:
    USB 3.0 can transfer data up to 10x faster than USB 2.0
  4. Excellent Compatibility:
    Fits nearly all cases with a standard scuzzy slot
  5. Hard Drive (HDD) Connectivity*:
    Able to connect Duplicator's HDD to a computer to easily transfer content from a PC to the duplicator for duplication or storage.
*Only available on controllers that offer the Copy Connection feature


Model
Duplicator External Device - Network
Operating Type
Addon for Vinpower Controller/Duplicator
OS Support
Windows 2000, XP, Vista, 7. (Both 32 & 64 bit)
PC Interface
USB 3.0 (up to 5Gbps)
RJ-45 Ethernet Jack (10/100/1000Mbits)
Device Interface Type
SATA1 (up to 1.5Gbps) / SATA2 (up to 3Gbps)
Controller Interface
Type
SATA1 (up to 1.5Gbps) / SATA2 (up to 3Gbps)

Firmware Upgradeable
No
Switch Mechanism
Controller/Duplicator Controlled
Power Input
4 Pin Floppy Power Connector
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Warranty
1 Year Manufacture Warranty
Manufacture
Vinpower Digital


MPN
 Actual Size
NetworkGiga

Size:
W 2.4" x D 3.5" x H 0.71"

Weight:
1 lbs
