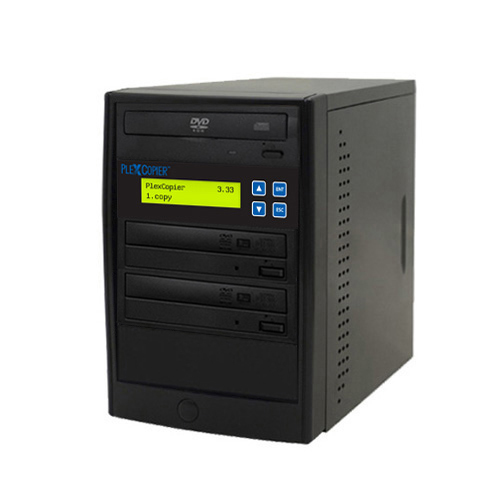

PlexCopier 2 Target DVD/CD Duplicator Tower

Description

The PlexCopier is a high-performance, affordable, one to one DVD-R/+R/CD-R duplicator. This easy-to-use duplicator offers the fastest and most efficient way to make duplicate copies of your digital files. It only takes 3 minutes to record 2 full 700MB CDs and about 6.5 minutes for 2 full 4.7GB DVDs. This duplicator is also capable of duplicating Dual Layer (DL) DVD discs.


Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  3. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  4. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  5. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.

Additional Features:

  1. New Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  2. AutoCopy feature:
    Fast duplication without pressing any buttons.
  3. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  7. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  8. Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  9. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  10. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  11. Supports both Disk-at-Once and Track-at-Once modes
  12. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  13. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  14. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  15. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

Model
PlexDisc SATA DVD/CD Tower Duplicator
Operating Type
Stand-alone
Internal Interface
SATA
Target
2
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese and Arabic can be ordered on request)
Display
20 x 2 Green LCD
Featuring Reader
Vinpower DVD-ROM
Featuring Recorder
24x SATA Drive DVD/CD Writer
Maximum Write Speed
DVD-R: 24x DVD-RW: 6x
DVD+R: 24x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 48x CD-RW: 32x
Formats Supported









DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input : 90 ~ 240 V, Up to 500 WATT max
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL
Manufacture
Vinpower Digital


Important Notice
  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.


Throughput Capacity Per Hour:
Target 123 456 789 101112 131415
 350 MB CD
 *at 40x duplication speed		 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360
 2.5 GB DVD
 *at 16x duplication speed 		12 24 36 48 60 72 84 96 108 120 132 144 156 168 180

Vinpower Digital has developed the first true standalone duplicator which can offer embedded copy protection. The unique Copy Protection Software (CPS) can embed a proprietary copy protection encryption into any DVD video master through a PC which can then be transferred onto the Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since CPS is software based as apposed to hardware based, there are no issues with compatibility with players like similar models on the market. In addition, CPS protects against both duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

In today’s savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn’t be restricted in the number of units you can sell because you can’t afford the high price of replicated copy protection. Instead by using Vinpower Digital’s CPS, you can feel secure at a fraction of the expense and time with no minimum or maximum quantities required.

How Copy Protection Works:
1. Load the supplied CPS software onto a suitable PC.
2. Plug in the CPS USB dongle with activated licenses into your PC’s USB socket.
3. Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
4. Transfer the new copy protected master content from the PC onto an enabled duplicator via USB/Copy Connect or LAN/Network connectivity
5. Load blank DVD recordable discs into the duplicator’s writer drive(s) then locate the transferred file through the duplicator’s menu keys from the internal hard drive
6. Initiate the copy process and when the finished discs all successfully copy, these discs will have the copy protection already embedded.

System Requirements:
Operating Systems


Windows® 7 (32 Bit, 64 Bit),
Windows Vista® (32 Bit, 64 Bit),
Windows XP (32 Bit, 64 Bit)
Minimum System Requirement for PC
CPU: Pentium 4, 2.4GHz; RAM: 512MB; 1 x Hi-Speed USB 2.0 Port
Administrator User Privilege for above Operation Systems
