SDDupeBox SD & MicroSD Duplicator

Description

Bigger is better. With 8 SD/Micro SD connection slots across each row, which is twice as many as the SDShark series, the SDDupeBox can double production capabilities. Digital content is the driving force of content delivery in business and even consumer applications and is growing by leaps and bounds. One of the fastest growing methods for distributing content is through flash memory which is most commonly recognized as USB pen drives or SD/Compact Flash cards. Flash memory devices are used in a multitude of components including computers, smart phones, portable gaming devices, and other useful hardware applications. With so many devices able to use and specifically geared toward this form of digital media, content providers large and small will need a way to make quick reliable copies. This is why Vinpower Digital has developed a line of flash copiers like the SDShark duplicator which is capable of copying both standard SD and microSD cards without requiring an adapter.

Vinpower Digital is a leader in digital duplication equipment, providing high quality low cost equipment for all forms of digital transference devices. Through our staff of expert engineers, highly trained assembly personnel, and helpful customer service, we're committed to meeting the most stringent quality control in the business, our own! At Vinpower Digital, just good enough is not good enough for us

Key Features:

  • Complete Standalone Operation:
    No PC required to operate the duplicator.
  • Asynchronous Duplication:
    Able to copy any size master data onto multiple sources asynchronously (independently) without sacrificing duplication speed or quality for faster and more reliable duplication.
  • Smart copy feature:
    This feature is used to quickly copy all accessible content contained on the SD/microSD device.
  • Supports all data Formats with bit by bit duplication
  • Supports most currently available SD/microSD drive:
    Supports most currently available SD/microSD drive in the market
  • Future functions upgradeable through firmware:
    Duplicator is able to be upgraded by future firmware updates.
  • Secure Erase:
    Fully erase the SD/microSD device without the data being recovered.
  • Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.

Additional Features:

  • Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  • Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  • User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  • Fast Key Support:
    4 fast keys for faster operations.
  • Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  • Device Info feature:
    Provides the detail information of the SD/microSD device.
  • SD/microSD Prescan feature:
    Able to scan the source SD/microSD device for physcial reading error.
  • Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

Model
SDDupeBox SD & MicroSD Duplicator
Operating Type
Stand-alone
Target
39, 79, 127
Buffer Memory
128MB for every 8 ports
Account Management
32 users (Standard License) or 64 users (Premium License)
Asynchronous Duplication
Yes
Smart Copy
Yes
Auto Counter
Yes
File System Supported
HFS+, HFSX, FAT, exFAT, NTFS, ext2/3/4
Max SD/microSD Size Supported
2TB
Language Support
English, Spanish, French, Japanese & more. Chinese can be added upon request.
Display
20 x 2 Blue LCD
Status LED
Green/Red LED on each port
Color
Black
Maximum Read Speed
33 MB/Sec≈2GB/Min
Maximum Write Speed
31 MB/Sec≈2GB/Min
Flash Device Supported
Most currently available SD, SDHC, microSD, microSDHC Card
Firmware Upgradeable
Yes
Power Supply
Input : 90 ~ 240 V AC
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital



Throughput Capacity Per Hour:
Target 39 79 127
 SD size: 512MB* 5460 11060 17780
 SD size: 1 GB* 2730 5530 8890
 SD size: 2 GB* 1365 2765 4445
 SD size: 4 GB* 663 1343 2159
 SD size: 8 GB* 312 632 1016


Important Notice
  • The actual reading/writing speed may vary depends on actual SD/microSD device.

Target MPN Actual Size Single Packing

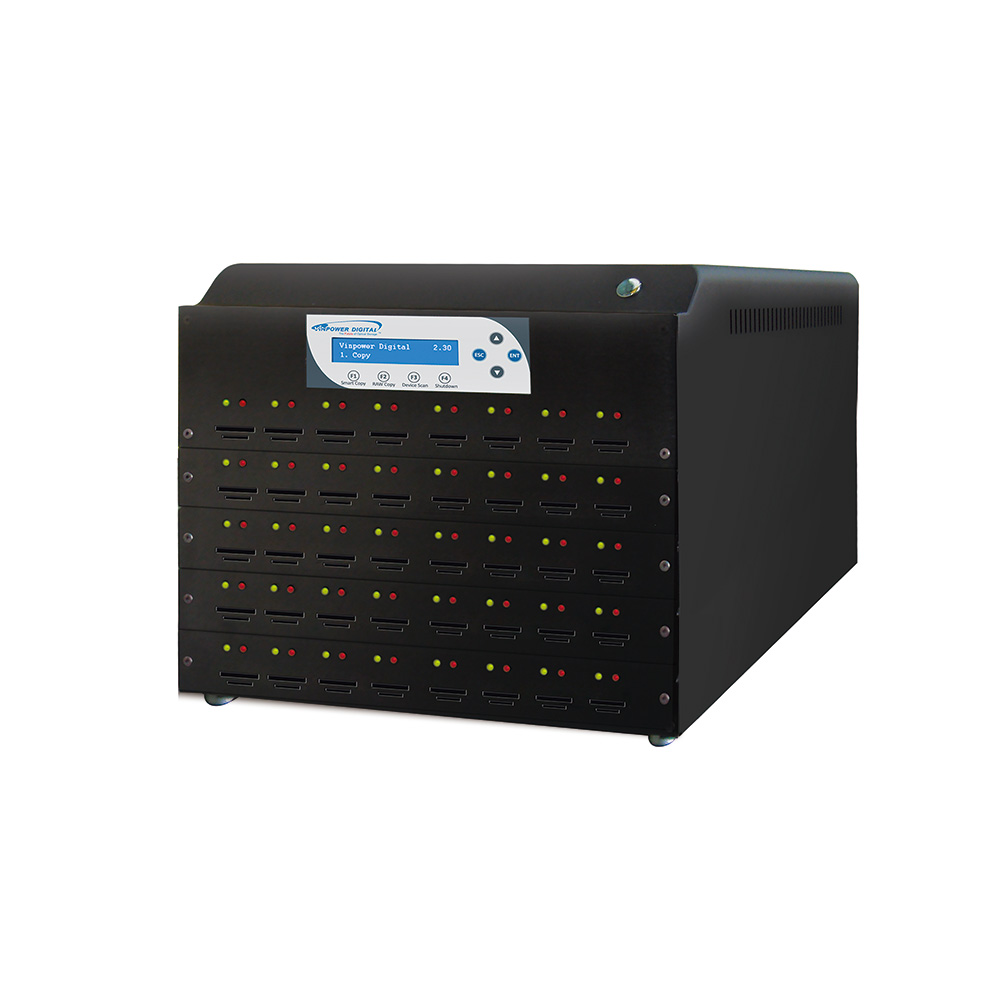

39 SDDupeBox-39T Size:
W 13.4" x D 14.1" x H 10.6"
(34 x 36 x 27 cm)

Weight:
20.2 lbs (9.17 kg)		 Size:
W 16.5" x D 17.3" x H 13.8"
(42 x 44 x 35 cm)

Weight:
22.4 lbs (10.17 kg)

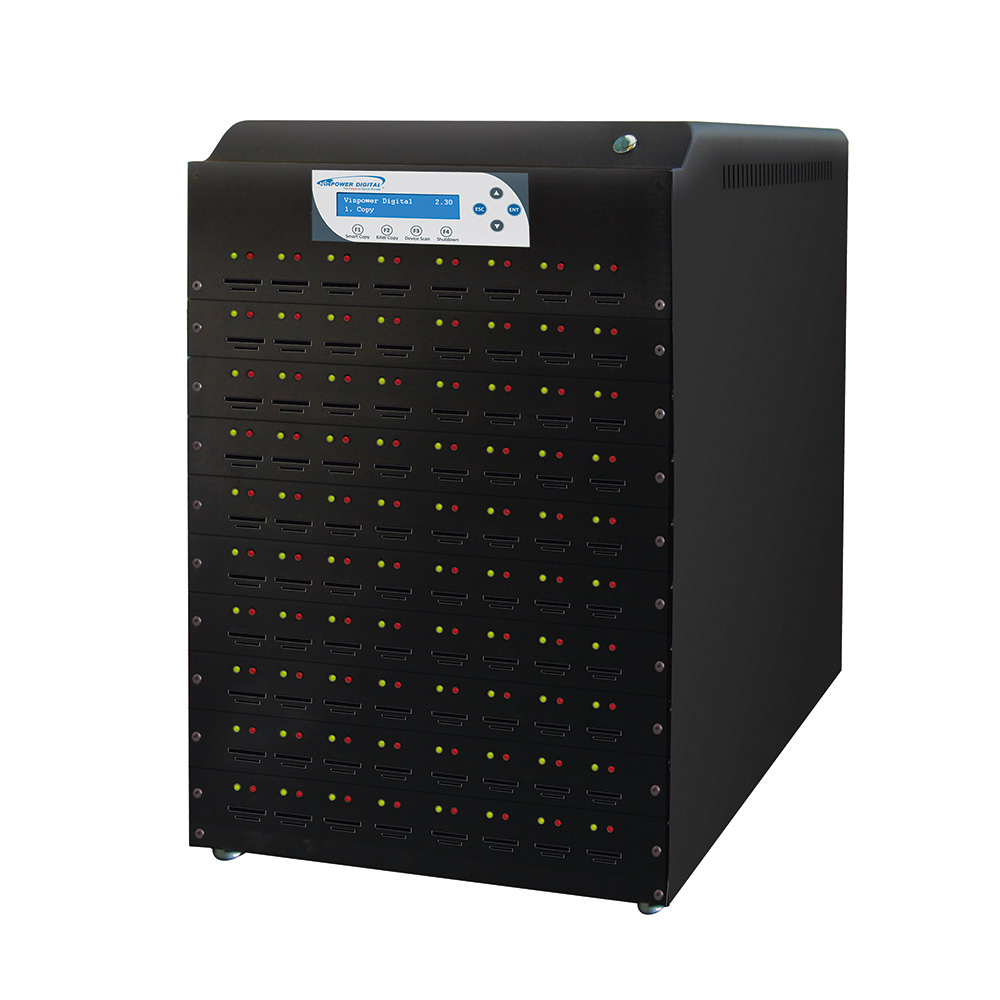

79 SDDupeBox-79T Size:
W 13.4" x D 14.1" x H 17.7"
(34 x 36 x 45 cm)

Weight:
33 lbs (15 kg)		 Size:
W 16.5" x D 17.3" x H 20.9"
(42 x 44 x 53 cm)

Weight:
36.4 lbs (16.5 kg)


127

SDDupeBox-127T		 Size:
W 13.4" x D 14.1" x H 25.6"
(34 x 36 x 65 cm)

Weight:
50.7 lbs (23 kg)		 Size:
W 24" x D 25" x H 27"
(61 x 64 x 69 cm)

Weight:
83 lbs (37.65 Kgs)
