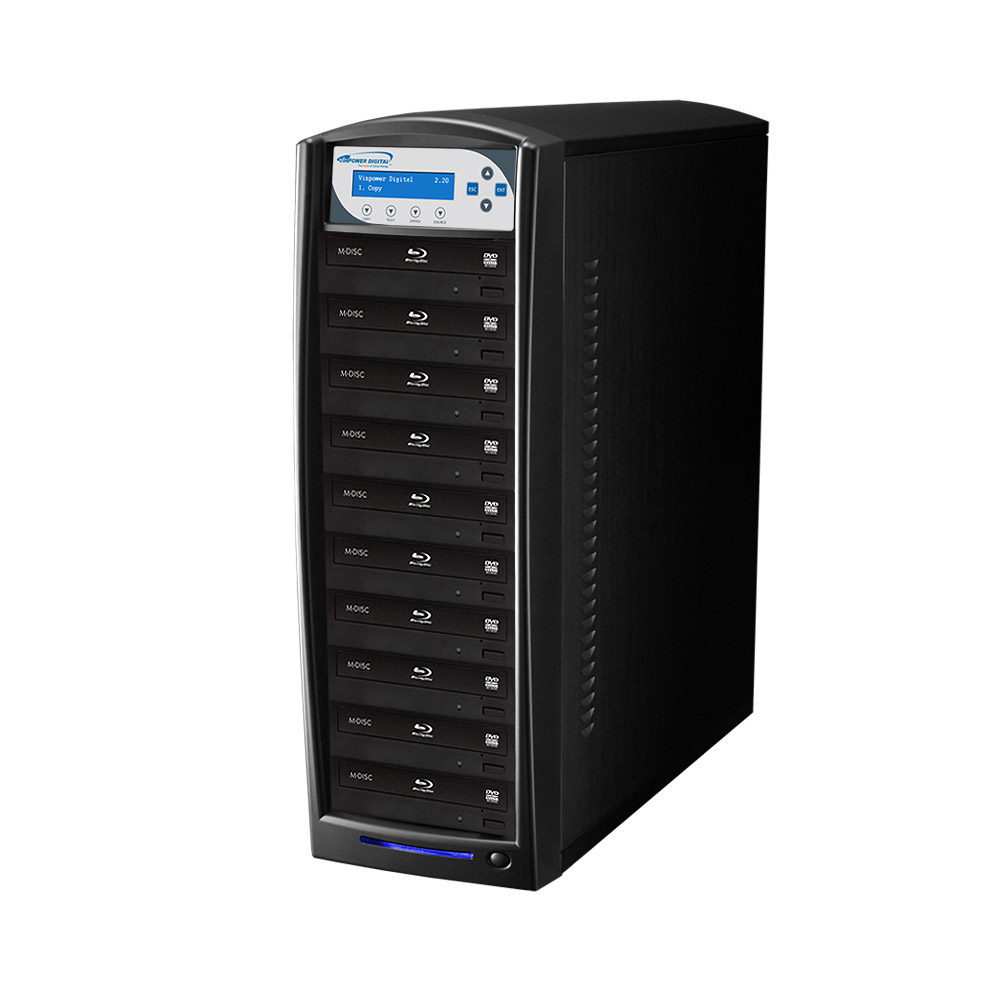

SharkBlu Daisy Chain Blu-ray Duplicator

Description

The SharkBlu DC (daisy chain capable duplicator) offers all the incredible capabilities and quality of the standard SharkBlu series with the added capability to connect multiple towers together that are all operated by a single source. Even though each tower can be operated independently, when they are connected together in a daisy chain configuration using a special serial cable, the SharkBlu DC can link over 60,000 towers together operated by a single source on the master tower. All units whether used on their own or connected are completely standalone and provide exact digital copies of CD, DVD and Blu-ray discs.


*Please note, due to hardware changes, the current daisy chain duplicators are not compatible with certain older model Daisy Chain duplicators as listed below:
→ Older systems with FW version D.xx (“x” represents the FW version number) are not compatible with later models      (systems built post 2014)
The last version in the D.xx series was D.39, which was released on (02/10/2014)
→ All systems with FW version DCxx (“x” represents the FW version number) are compatible with the newer models      built after 2014

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Able to copy Blu-Ray discs:
    Able to duplicate Blu-Ray discs as well as DVD and CD discs.
  3. Supports all currently available Blu-ray & DVD media including Double/Dual layer:
    Can duplicate Single Layer DVD±R/RW/Blu-ray and Double/Dual Layer DVD±R/Blu-ray Formats.
  4. Daisy Chain Capable:
    Able to connect multiple manual towers together which are all controlled by one master source for quick reliable mass production.
  5. Independent Towers:
    All of the Daisy Chain towers can be operated as independent towers or connected together depending on the users needs.
  6. Load and Copy Supported:
    Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive
  7. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  8. Industry leading 256MB buffer memory:
    Keeps all drives burning without pausing (known as buffer underrun) for the most stable and reliable high speed duplication - The higher the memory buffer the less likely to encounter buffer underrun errors.
  9. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  10. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  11. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.
  12. BD Safe Copy *:
    Improves recording and playback compatibility, especially for lower quality BD media.
Additional Features:

  1. AutoCopy feature:
    Fast duplication without pressing any buttons.
  2. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  3. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  4. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Aluminum Case used to provide a highly functional and attractive exterior:
    Duplicator casing available in metallic silver or midnight black aluminum casing.
  7. Fast Key Support:
    4 fast keys for faster operations.
  8. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  9. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  10. Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  11. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  12. Supports both Disk-at-Once and Track-at-Once modes
  13. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  14. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  15. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  16. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  17. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.
*This feature only applies to Blu-ray models when making Blu-ray copies. Additionally, the added mechanism will reduce the overall duplication speed.

Model
SharkBlu™ Daisy Chain Blu-ray/DVD/CD Tower Duplicator
Operating Type
Stand-alone
Target
10 or 15
Buffer Memory
256MB
Account Management
32 users (Standard License) or 64 users (Premium License)
HDD Partition Naming*
Up to 14 Characters Per Partition
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese can be ordered on request)
Display
20 x 2 Blue LCD
Color
Black
Hard Drive
2TB (Higher Capacity HDD is Available)
Featuring Recorder
12x SATA Blu-ray/DVD/CD Writer(s)
Maximum Write Speed





BD-R: 12x BD-RE: 2x
BD-R DL: 12x BD-RE DL: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 40x CD-RW: 24x
Formats Supported











BD-ROM, BD-R, BD-RE
BD-R Double Layer , BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD+R Double Layer, DVD-R Dual Layer
DVD-R, DVD-RW, DVD+R, DVD+RW
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input : 90 ~ 240 V, Up to 500 WATT max
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS, UL
Manufacture
Vinpower Digital



Throughput Capacity Per Hour:

DC10 Series
Tower 1 2 3 4 5 10 50 100 x
Target 10 20 30 40 50 100 500 1000 10*x
 350 MB CD
 *at 40x duplication speed		 240 480 720 960 1200 2400 12000 24000 24*x
 2.5 GB DVD
 *at 16x duplication speed 		120 240 360 480 600 1200 6000 12000 120*x
  12.5 GB Blu-ray
  *at 8x duplication speed 		70 140 210 280 350 700 3500 7000 70*x

DC15 Series
Tower 1 2 3 4 5 10 50 100 x
Target 15 30 45 60 75 150 750 1500 15*x
 350 MB CD
 *at 40x duplication speed		 360 720 1080 1440 1800 3600 18000 36000 360*x
 2.5 GB DVD
 *at 16x duplication speed 		180 360 540 720 900 1800 9000 18000 180*x
  12.5 GB Blu-ray
  *at 8x duplication speed 		105 210 315 420 525 1050 5250 10500 105*x
*x represents the number of towers

Important Notice
  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Target MPN
 Actual Size Single Packing Double Packing
HDD to 10 SharkBlu-S10T-DC-BK Size:
W 7.5" x D 21" x H 22"
(19 x 53 x 55.9 cm)

Weight:
29 lbs (13.2 kg)		 Size:
W 27" x D 25" x H 12"
(68.9 x 63.5 x 30.5 cm)

Weight:
36 lbs (16.3 kg)		 Size:
W 30" x D 28" x H 15"
(76.2 x 71 x 38 cm)

Weight:
43 lbs (19.5 kg)
HDD to 15 SharkBlu-S15T-DC-BK Size:
W 7.5" x D 21" x H 33"
(19 x 53 x 89.5 cm)

Weight:
55 lbs (25 kg)		 Size:
W 12" x D 26" x H 38"
(30.4 x 66 x 96.6 cm)

Weight:
64 lbs (29 kg)		 Size:
W 15" x D 28" x H 41"
(38.1 x 71.1 x 104.1 cm)

Weight:
68 lbs (30.9 kg)



Available Upgrade
Part Number Description
Upgrade2TB Upgrade Hard Drive from 1TB To 2 TB
Upgrade4TB Upgrade Hard Drive from 1TB To 4 TB
Upgrade6TB Upgrade Hard Drive from 1TB To 6 TB
Upgrade8TB Upgrade Hard Drive from 1TB To 8 TB
