USBDupeBoxES™ USB Duplicator

Description

Digital content is the driving force of content delivery in business and even consumer applications and is growing by leaps and bounds. One of the fastest growing methods for distributing content is through flash memory which is most commonly recognized as USB pen drives or SD/Compact Flash cards. Flash memory devices are used in a multitude of components including computers, smart phones, portable gaming devices, and other useful hardware applications. With so many devices able to use and specifically geared toward this form of digital media, content providers large and small will need a way to make quick reliable copies. This is why Vinpower Digital has developed a line of flash copiers like the USBDupeBoxES duplicator which is capable of copying both standard SD and microSD cards without requiring an adapter. Vinpower Digital is a leader in digital duplication equipment, providing high-quality low-cost equipment for all forms of digital transference devices. With its ergonomic contour, enhanced copy methods, data output log, and expanded support for any flash media with a USB connection, the USBDupeBoxES is the perfect tool for large scale USB flash duplication. Through our staff of expert engineers, highly trained assembly personnel, and helpful customer service, we're committed to meeting the most stringent quality control in the business, our own!

Key Features:
  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Asynchronous Duplication:
    Able to copy any size master data onto multiple sources asynchronously (independently) without sacrificing duplication speed or quality for faster and more reliable duplication.
  3. Smart copy feature
    This feature is used to quickly copy all accessible content contained on the USB device.
  4. Ergonomic Design
    Offers ergonomically slanted interface for easier and more convenient operation.
  5. Supports all data Formats with bit by bit duplication
  6. Data Log PC Export Utility
    Able to export the operations log from all jobs onto a PC via USB cable.
  7. Supports most currently available USB drive:
    Supports most currently available USB drive in the market
  8. Future functions upgradeable through firmware:
    Duplicator is able to be upgraded by future firmware updates.
  9. Supports alternative flash formats:
    SD, Micro SD and CF Support with optional corresponding SD, Micro SD, or CF Interface Module Add-on
  10. Secure Erase:
    Fully erase the USB device without the data being recovered.
  11. Multi-Language capability
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.
  12. Multilateral USB Compatibility:
    Compatible with USB 3.0, 2.0, or 1.0 devices
Additional Features:
  1. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  2. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Fast Key Support:
    4 fast keys for faster operations.
  5. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  6. Device Info feature:
    Provides the detail information of the USB device.
  7. USB Prescan feature:
    Able to scan the source USB device for physcial reading error.
  8. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

Model
USBDupeBoxES USB Duplicator
Operating Type
Stand-alone
Target
23, 31, 39, 47
Buffer Memory
128MB for every 8 ports
Account Management
32 users (Standard License) or 64 users (Premium License)
Asynchronous Duplication
Yes
Smart Copy
Yes
Auto Counter
Yes
File System Supported
HFS+, HFSX, FAT, exFAT, NTFS, ext2/3/4
Max USB Size Supported
2TB
CF Support
Optional (with CF Interface Module Addon)
Language Support
English, Spanish, French, Japanese & more. Chinese can be added upon request.
Display
20 x 2 Blue LCD
Status LED
Green/Red LED on each port
Color
Black
Maximum Read Speed
33 MB/Sec≈2GB/Min
Maximum Write Speed
31 MB/Sec≈2GB/Min
USB Flash Drives Supported
Recognized USB 3.0/2.0/1.1 Flash Drives
Firmware Upgradeable
Yes
Power Supply
Input : 90 ~ 240 V AC
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital



Throughput Capacity Per Hour:
Target 23 31 39 47
 USB size: 512MB* 3220 4340 5460 6580
 USB size: 1 GB* 1610 2170 2730 3290
 USB size: 2 GB* 805 1085 1365 1645
 USB size: 4 GB* 391 527 663 799
 USB size: 8 GB* 184 248 312 376


Important Notice
  • The actual reading/writing speed may vary depends on actual USB device.
  • This unit will not copy source material that contains copy protection or non-standard USB storage protocol.


Target MPN Actual Size Single Packing

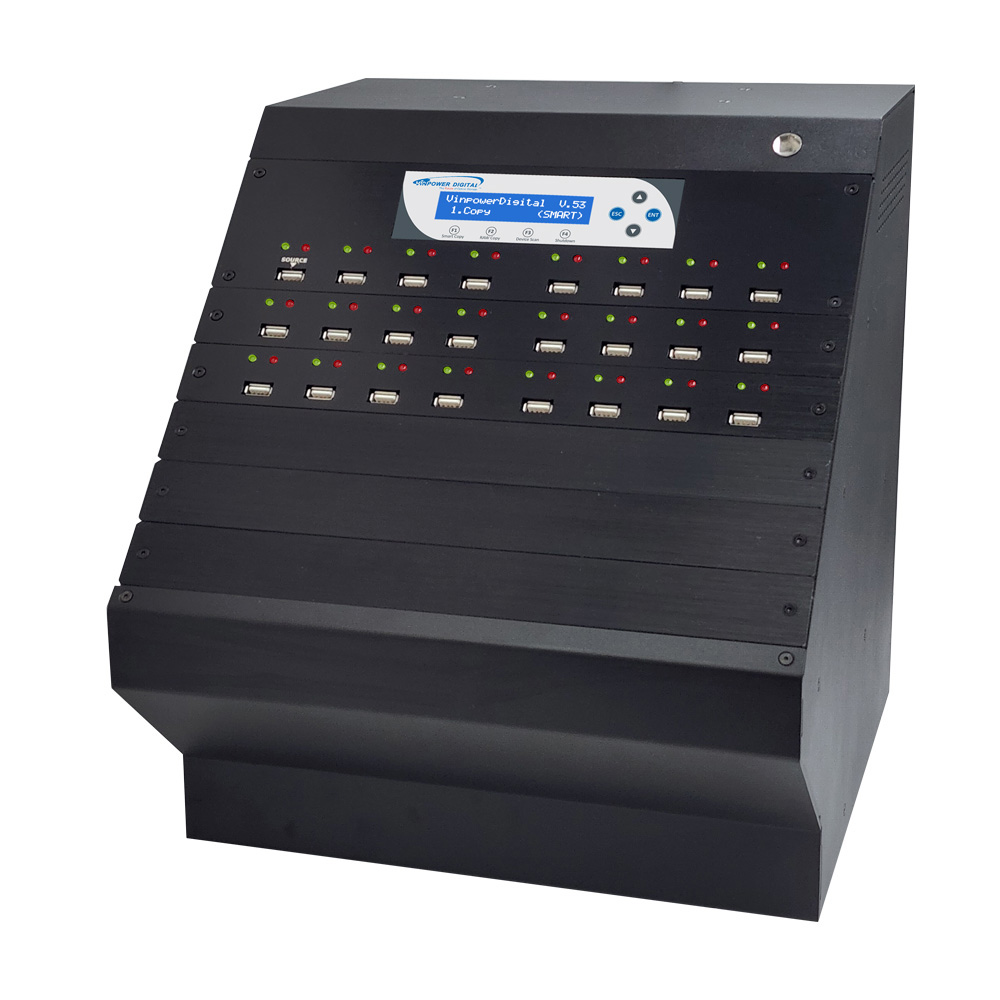

23 USBDupeBoxES-23T Size:
W 16" x D 14" x H 15"
(40.6 x 35.6 x 38.1 cm)

Weight:
24 lbs (11 kg)
Size:
W 18" x D 20" x H 20"
(45.7 x 50.8 x 50.8 cm)

Weight:
28 lbs (12.7 kg)
31 USBDupeBoxES-31T Size:
W 16" x D 14" x H 15"
(40.6 x 35.6 x 38.1 cm)

Weight:
25 lbs (11.4 kg)
Size:
W 18" x D 20" x H 20"
(45.7 x 50.8 x 50.8 cm)

Weight:
29 lbs (13.2 kg)
39 USBDupeBoxES-39T Size:
W 16" x D 14" x H 15"
(40.6 x 35.6 x 38.1 cm)

Weight:
26 lbs (11.8 kg)
Size:
W 18" x D 20" x H 20"
(45.7 x 50.8 x 50.8 cm)

Weight:
30 lbs (13.6 kg)

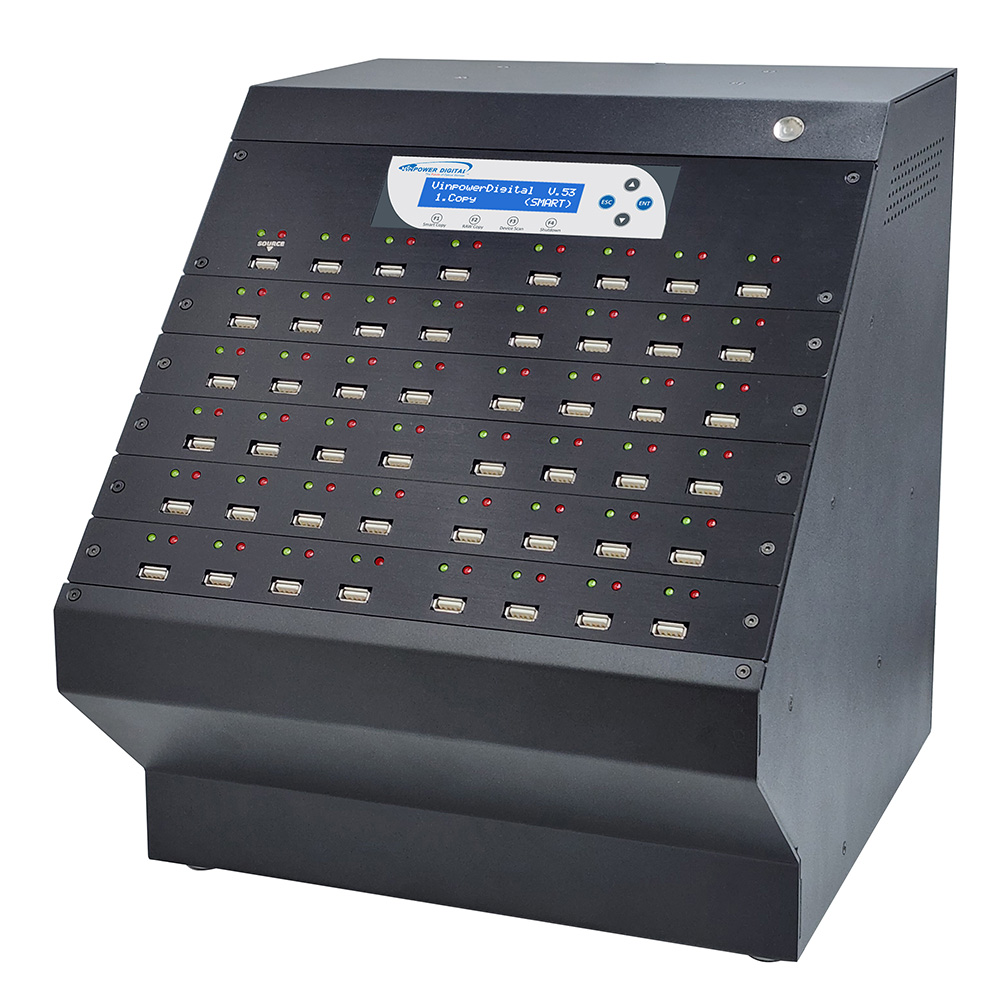

47 USBDupeBoxES-47T Size:
W 16" x D 14" x H 15"
(40.6 x 35.6 x 38.1 cm)

Weight:
27 lbs (12.3 kg)
Size:
W 18" x D 20" x H 20"
(45.7 x 50.8 x 50.8 cm)

Weight:
31 lbs (14 kg)
