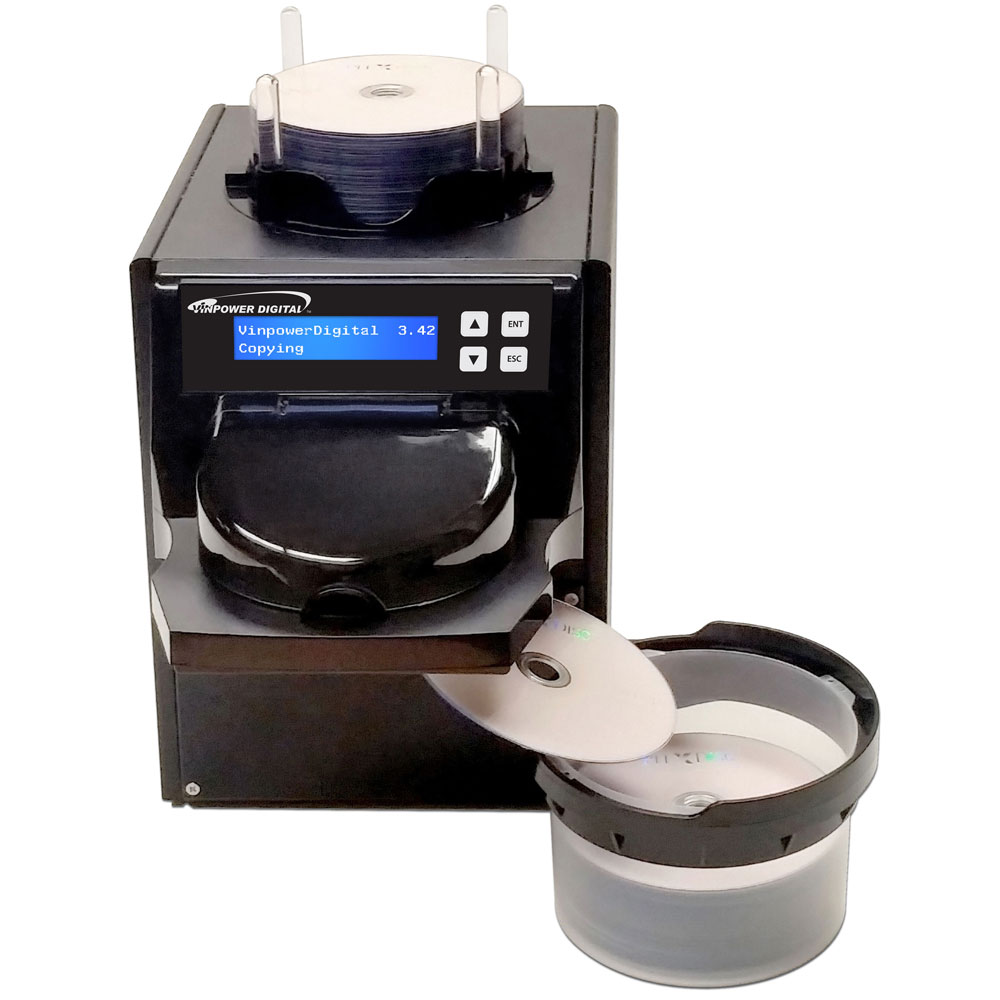

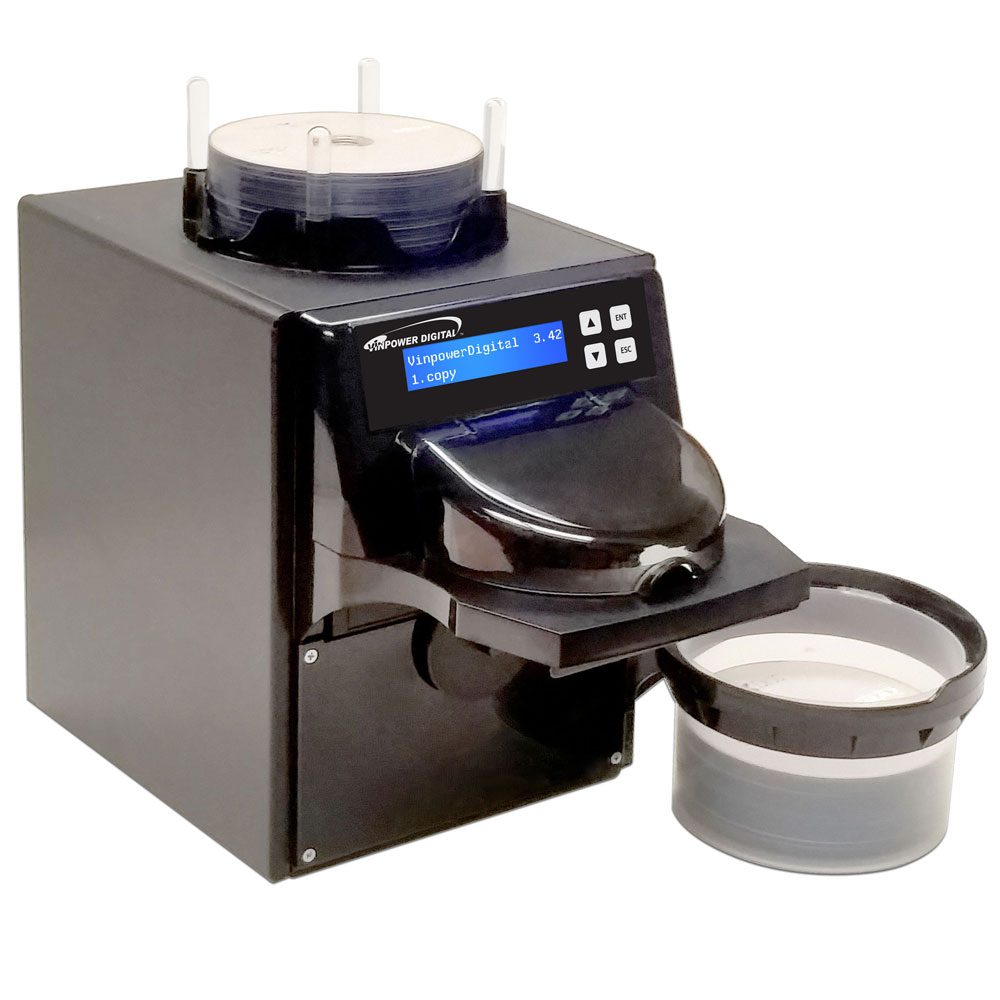

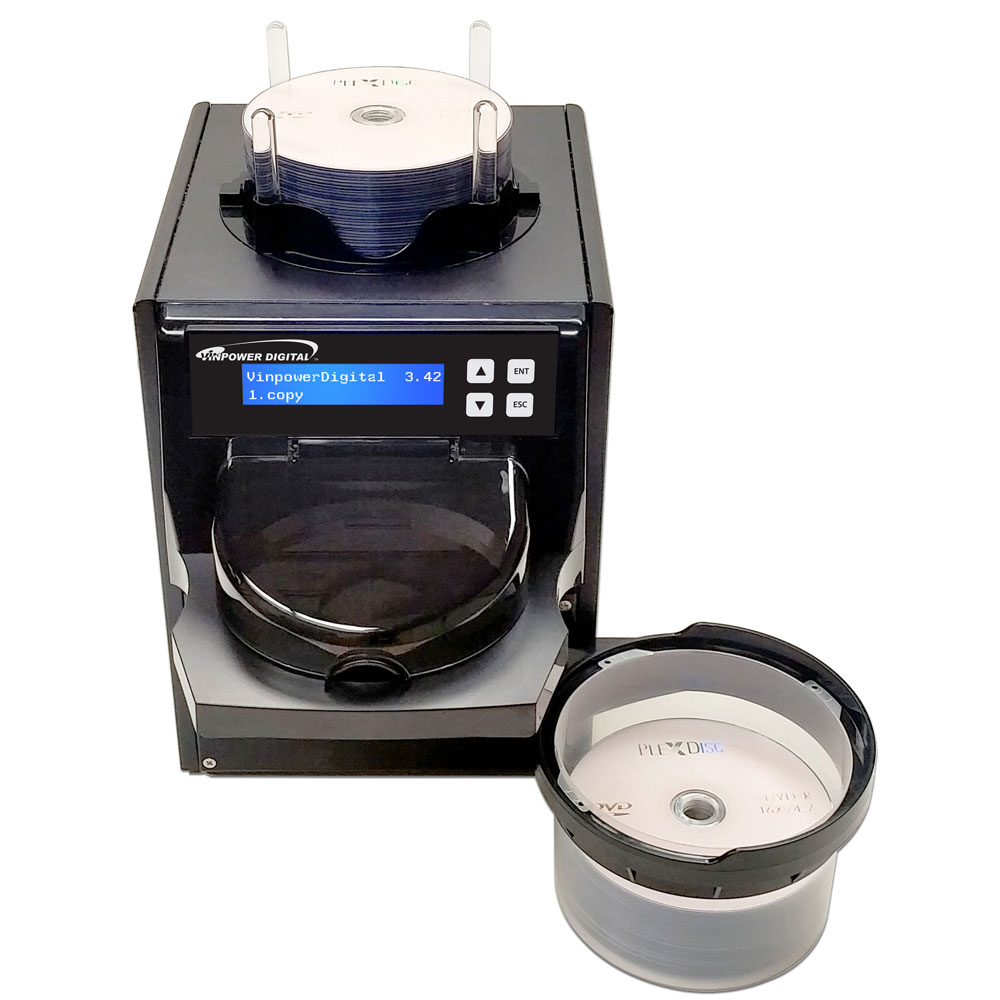

Blu-Ray MiniLoader Duplicator

Description

Did you ever feel you could use the convenience of an autoloader when copying Blu-ray discs but didn't have the quantity to justify the need or investment? The MiniLoader VDX-1-BD will eliminate all doubts. Whether you duplicate 2 or 3 discs at a time or 50 to 100 a day, the MiniLoader VDX-1-BD is the most affordable and compact disc autoloader on the market. With 50 disc capacity and 1 Blu-ray recording drive, the MiniLoader VDX-1-BD gives you the ability to work on other matters with the confidence that your project will be duplicated quickly and reliably, completely unattended. You get all this for a price competitive with a standard manual tower duplicator. Do not be confined by your duplicator, let the MiniLoader VDX-1-BD free you to increase your potential.



Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Reject Bin:
    System can automatically discard discs that did not burn properly, ensuring the defective discs are not mixed up with your successfully copied discs and does not disrupt the job by remaining in the drive tray until it’s manually taken out.
  3. Supports all currently available recordable Blu-ray media (BD-R & BD-R DL) including Double layer:
    Can duplicate Single Layer 25GB BD-R/RE and Double Layer 50GB BD-R/RE Formats.
  4. Supports all currently available DVD media including Double/Dual layer:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  5. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  6. Large disc capacity:
    Copies up to 50 discs per run.
  7. Multi-Master Recognition Technology (MMRT):
    Can load multiple masters at once to run multiple duplication jobs in succession.
  8. Disc Alignment Protection Feature:
    Automatically ejects and closes the tray when the media wasn't properly placed.
  9. Auto-Copy feature:
    System starts duplication process automatically by assuming the 1st disc in the input bin is the master disc and remaining are the blanks.
  10. Supports Manual Duplication Mode.
  11. Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  12. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.

Additional Features:

  1. Multi-Language capability for English, Spanish and French:
    The text on the LCD screen can currently be displayed in English, Spanish and French.
  2. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  3. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.'
  6. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  7. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  8. Selectable CD and DVD burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  9. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  10. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD, or DVD as well as the correct format to copy.
  11. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  12. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  13. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.



SPECIAL FEATURES:
MiniLoader VDX-1-BD autoloader features Multi-Master Recognition Technology (MMRT). Traditionally, autoloaders can only handle one duplication job at a time and additional manpower is needed to load a new duplication job (ex. Load new master disc, insert more blank discs, etc.) Now, with this totally revolutionized auto-master recognition technology, the MiniLoader VDX-1-BD can handle multiple duplication jobs per run by itself. For example, if you want to make 2 copies of job A, 4 copies of job B, and 3 copies of job C. Traditional autoloaders will only process one job per run and need someone to load job B and job C to the autoloader. However, with the MiniLoader VDX-1-BD featuring MMRT, it will process all three jobs sequentially per run by itself, without the need to load and reload additional master disc. This process affords the user more time to dedicate to other matters rather than keeping a constant eye on the autoloader.

Model
MiniLoader VDX-1 Blu-Ray / DVD / CD Automated Duplicator
Operating Type
Stand-alone Automated
Target
1
Max Disc Capacity
50
Account Management
32 users (Standard License) or 64 users (Premium License)
Partition Naming
Up to 14 Characters Per Partition
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more (Chinese an be ordered on request)
Display
20 x 2 Blue LCD
Featuring Recorder
12x SATA Blu-ray/DVD/CD Writer(s)
Hard Drive
1TB
Maximum Copy Speed
BD-R: 12x BD-RE: 2x
BD-R DL: 12x BD-RE DL: 2x
DVD-R: 16x DVD-RW: 6x
DVD+R: 16x DVD+RW: 8x
DVD-R DL: 8x DVD+R DL: 8x
CD-R: 40x CD-RW: 24x
Formats Supported












BD-ROM, BD-R, BD-RE
BD-R Double Layer, BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Power Supply
Input: 90 ~ 240 V
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
RoHS
Manufacture
Vinpower Digital



Important Notice
  • The duplicator will not copy any copy-protected discs.
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Target Disc Capacity MPN
Actual Size Single Packing
1 50 VDX-1-BD Size:
W 11.9" x D 12.1" x H 8.1"
(30.1 x 30.8 x 20.6 cm)

Weight:
11.9 lbs (5.38 kg)
Size:
W 17.9" x D 15.9" x H 12"
(45.5 x 40.5 x 30.5 cm)

Weight:
14.76 lbs (6.7 kg)
