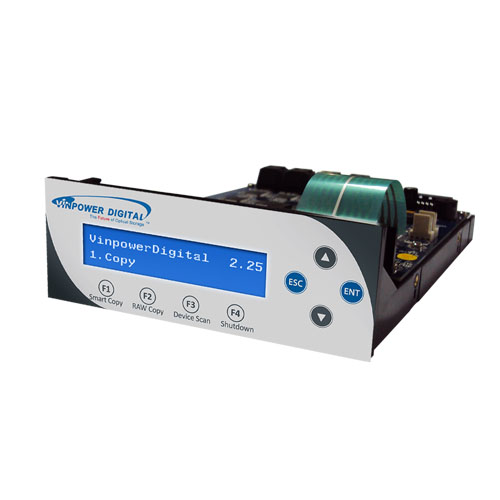

Hard Drive Duplicator Controller

Description

The Vinpower Digital standalone standard hard drive duplicator controller is the perfect solution for those that need to build standalone manual tower HDD duplicators to make back-up or residual clones of the master hard drive (HDD) content. Available in multiple size configurations supporting reading and writing speeds up to a blazing fast speed of 75MB/sec, allows the user to make quick and reliable clones of nearly any HDD using virtually any OS platforms, such as Unix, Linux, Windows, or Macintosh . The Hard Drive Duplicator Controller supports the FAT16/32, extFAT, NTFS, and ext2/3/4 file systems. Using the Hard Drive Duplicator Controller gives you a piece of mind that each HDD will be copied accurately and quickly for a no hassle, low cost alternative to performing this task 1 at a time through a PC.

Additionally, The Hard Drive Duplicator Controller performs the reliable Quick Erase and/or Full Erase option, but if can also erase the HDD up to the high government DoD 5220 standards which ensure there was no trace of the content left behind.



Hardware Features:
  1. Optional CF Support with optional CF Interface Module Add-on
  2. Support of all SATA Interface, 1.5Gbps, 3.0Gbps, 6.0Gbps
  3. Industry Standard 75MB/s (4GB/min) Simultaneous Actual Transfer Speed
  4. 2.5" and 3.5" HDD/SSD Support

Software Features:
  1. Standalone Operation, No PC is required
  2. Simultaneous and Independent HDD operation
  3. DoD Certified HDD Erase Support
  4. Extensive Smart File system Support - Ext2, Ext3, Ext4, NTFS, exFAT, FAT16, FAT32
  5. Auto Partition Layout Support
  6. Operation Progress Display during Duplication
  7. Read/Write Error Skip Support
  8. Account Management Support
  9. Future functions upgradeable through Firmware Update

Model
Hard Drive Controller
Operating Type
Stand-alone
Target
2 , 5 , 8 , 14
Buffer Memory
256MB DDR2
HDD Interface
SATA, Compatible with SATA I (1.5G), II(3.0G) & III(6.0G)
HDD Form Factor
3.5" and 2.5"
HDD Hot Swap
Yes
Smart Copy
Yes
File System Supported
FAT16/32, exFAT, NTFS, ext2/3/4, HFS+
Maximum Read Speed
75MB/Sec*(4GB/min)
Maximum Write Speed
75MB/Sec*(4GB/min)
Max HDD Capacity
2TB
Account Management
32 users (Standard License) or 64 users (Premium License)
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more(Chinese can be ordered on request)
Display
20 x 2 Blue LCD
Firmware Upgradeable
Yes
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC/CE, ROHS
Manufacture
Vinpower Digital



Important Notice
  • *The actual reading/writing speed may vary depends on actual HDD device

Target MPN
 Actual Size Single Packing Double Packing
2 VPD-HDD-2T Size:
W 5 7/8" x D 7" x H 1 5/8"
(14.9 x 17.8 x 4.2 cm)

 Size:
W 8 1/2" x D 6 1/4" x H 2 7/8"
(21.6 x 16 x 7.5 cm)

Weight:
1.2 lbs (0.55 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
14 lbs (6.4 kg)
5 VPD-HDD-5T Size:
W 5 7/8" x D 7" x H 1 5/8"
(14.9 x 17.8 x 4.2 cm)

 Size:
W 8 1/2" x D 6 1/4" x H 2 7/8"
(21.6 x 16 x 7.5 cm)

Weight:
1.2 lbs (0.55 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
14 lbs (6.4 kg)
8 VPD-HDD-8T Size:
W 5 7/8" x D 7" x H 1 5/8"
(14.9 x 17.8 x 4.2 cm)

 Size:
W 8 1/2" x D 6 1/4" x H 2 7/8"
(21.6 x 16 x 7.5 cm)

Weight:
1.2 lbs (0.55 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
14 lbs (6.4 kg)
14 VPD-HDD-14T Size:
W 5.91" x D 9.1" x H 1.77"
(15 x 23 x 4.5 cm)

 Size:
W 7.9" x D 9.9" x H 2.95"
(20 x 25.2 x 7.5 cm))

Weight:
1.76 lbs (0.80 kg)		 Size:
W 11" x D 16.54" x H 15.75"
(28 x 42 x 40 cm)

Weight:
18.4 lbs (8.35 kg)

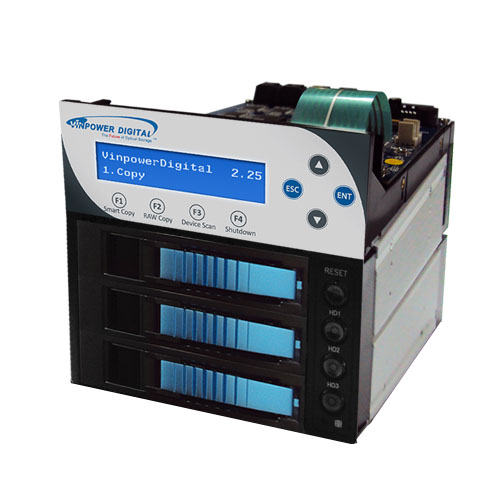

2 VPD-HDD-2T-KIT Size:
W 5 7/8" x D 7" x H 1 5/8"
(14.9 x 17.8 x 4.2 cm)

*Single Kit:
W 5 7/8" x D 8" x H 3 1/4"
(14.9 x 20.4 x 8.4 cm)		 Size:
W 8 1/2" x D 6 1/4" x H 2 7/8"
(21.6 x 16 x 7.5 cm)

Weight:
1.2 lbs (0.55 kg)

*Single Kit:
W 10" x D 7" x H 7 1/4"
(25.5 x 17.8 x 18.5 cm)

Weight:
3.2 lbs (1.45 kg)

 Coming Soon
5 VPD-HDD-5T-KIT Size:
W 7" x D 5 7/8" x H 1 5/8"
(17.8 x 14.9 x 4.2 cm)

 Size:
W 8 1/2" x D 6 1/4" x H 2 7/8"
(21.6 x 16 x 7.5 cm)

Weight:
1.2 lbs (0.55 kg)		 Coming Soon
8 VPD-HDD-8T-KIT Size:
W 7" x D 5 7/8" x H 1 5/8"
(17.8 x 14.9 x 4.2 cm)

 Size:
W 8 1/2" x D 6 1/4" x H 2 7/8"
(21.6 x 16 x 7.5 cm)

Weight:
1.2 lbs (0.55 kg)		 Coming Soon
