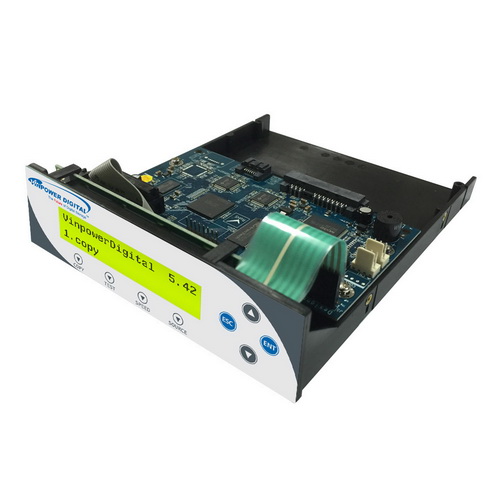

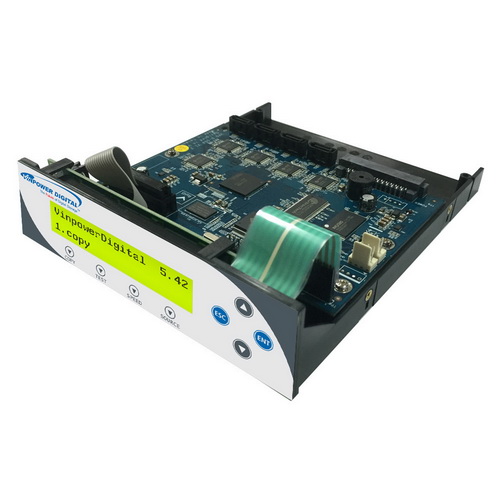

Manual Tower SATA Blu-ray/DVD/CD Controller

Description

The most important component in a duplicator is the controller. Our controller (the duplicator's motherboard) is specially programmed to offer the highest quality performance of any controller on the market. We design our controllers to better meet your needs for both performance and aesthetics. The quality of the controller can make all the difference between making perfect CD and DVD copies or ending up with failed or low quality copies. In fact, if you took two identical duplicators with the only variables being the controllers, our controller will produce a better PIPO number every time (scale for measuring DVD disc quality). In addition to compatibility, we make a more powerful controller that ensures proper functioning and more reliability. The added power allows our controller to offer better performance and more options. Many of our controllers come standard with a 128MB ~ 256MB memory buffer for the best reading performance of any duplicator on the market.



Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. USB Copy Connect (optional):
    Able to transfer image files directly from a PC to the duplicator's internal HDD. No longer need to burn a master disc to initiate the duplication process.
  3. Load and Copy Supported:
    Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive
  4. Continuous Hard Drive Partitioning*
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  5. Multi-format duplication:
    Able to duplicate Blu-ray**, HD DVD**, DVD, CD and upgradeable for future drive and media applications.
  6. Largest manual tower range
    1 to 1 up to 1 to 15
  7. Industry leading 256MB buffer memory *:
    Keeps all drives burning without pausing (known as buffer underrun) for the most stable and reliable high speed duplication - The higher the memory buffer the less likely to encounter buffer underrun errors.
  8. Copy CD+G format **:
    Able to make back-up copies of CD+G format discs
  9. Creates mix compilation CD+G Disc **:
    Able to compile multiple CD+G tracks onto a single disc from multiple sources.
  10. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  11. Drive firmware upgradeability:
     Capable of upgrading the drives for selected brands through the Duplicator.
  12. Multi-Language capability:
     The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request. (Chinese available upon request)

Additional Features:

  1. AutoCopy feature:
    Fast duplication without pressing any buttons.
  2. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  3. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  4. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  13. Supports both Disk-at-Once and Track-at-Once modes
  14. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  15. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  16. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  17. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.
  18. Optional External USB 2.0/Firewire IEEE 1394 connection (Requires separate Add-ON, not included with controllers):
    Able to connect specific drives to a computer to generate a master disc for duplication.
  *Available only on specific models.
**Ability to copy Blu-ray, HD DVD, and CD+G format depends on whether the writer drive supports those formats.

Model
Vinpower Digital SATA Blu-ray/DVD/CD Stand-Alone Manual Tower Duplicator Controller
Operating Type
Stand-alone
Internal Interface
SATA
Target
1, 3, 4, 7, 8, 9, 11 and 15
Language Support
English / Spanish / French / Japanese / German / Italian & more (Chinese available upon request)
Hard Drive Support
All SATA format Hard Drive (Hard drive is required on each tower)
Buffer Memory
Up to 256MB*
Display
20 x 2 LCD
Formats Supported









Sony DVD/CD Writer
- SONY BWU-100A Blu-Ray capable drive*

PANASONIC Drive DVD/CD Writer
- Panasonic SW-5583 Blu-Ray capable drive*

LG Blu-ray/DVD/CD Writer
- LG GGW-H20L Blu-Ray capable drive*

PIONEER Drive DVD/CD Writer
- PIONEER BDR-101A Blu-Ray capable drive*

PLEXTOR B900A Blu-Ray capable drive*

Additionally supports most all other brands

Supported Copy Speed
Copy speed depends on the writer drive used. The controller capable of achieving all listed drive speeds**.
Formats Supported**
Format supported depends on the writer drive used.
BD-Rom, BD-R, BD-R DL, BD-RE,
DVD-ROM, DVD-Video, DVD-Audio, Double Layer DVD+R, Dual Layer,
DVD-R,DVD-R/RW, DVD+R/RW
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD), CD+G
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Operating Humidity
20% ~ 80%
Temperature
40°C (104°F) / 5°C (41°F)
Regulation
FCC, CE, RoHS
Manufacture
Vinpower Digital


Throughput Capacity Per Hour:
Target 123 456 789 101112 131415
 350 MB CD
 *at 40x duplication speed		 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360
 2.5 GB DVD
 *at 16x duplication speed 		12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
 12.5 GB Blu-ray
 *at 6x duplication speed 		5 10 15 20 25 30 35 40 45 50 55 60 65 70 75

  *Such spec varies based on the size and number of drives.
**Actual duplication speed determined by the drive and the media used. The drive will determine the maximum allowable speeds for the media.

Target MPN
 Actual Size Single Packing 10 Pack
1 VPDS-1T Size:
W 5.9" x D 7.09" x H 1.77"
(15 x 18 x 4.5 cm)
Size:
W 6.3" x D 8.66" x H 2 .95"
(16 x 22 x 7.5 cm)

Weight:
0.82 lbs (0.37 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
9.57 lbs (4.34 kg)
3 VPDS-3T Size:
W 5.9" x D 7.09" x H 1.77"
(15 x 18 x 4.5 cm)
 Size:
W 6.3" x D 8.66" x H 2.95"
(16 x 22 x 7.5 cm)

Weight:
0.95 lbs (0.43 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
10.82 lbs (4.91 kg)
4 VPDS-4T Size:
W 5.9" x D 7.09" x H 1.77"
(15 x 18 x 4.5 cm)
 Size:
W 6.3" x D 8.66" x H 2.95"
(16 x 22 x 7.5 cm)

Weight:
0.95 lbs (0.43 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
10.82 lbs (4.91 kg)
7 VPDS-7T Size:
W 5.9" x D 7.09" x H 1.77"
(15 x 18 x 4.5 cm)
 Size:
W 6.3" x D 8.66" x H 2.95"
(16 x 22 x 7.5 cm)

Weight:
1.25 lbs (0.57 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
13.85 lbs (6.28 kg)
8 VPDS-8T Size:
W 5.9" x D 7.09" x H 1.77"
(15 x 18 x 4.5 cm)
 Size:
W 6.3" x D 8.66" x H 2.95"
(16 x 22 x 7.5 cm)

Weight:
1.25 lbs (0.57 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
13.85 lbs (6.28 kg)
9 VPDS-9T Size:
W 5.9" x D 7.09" x H 1.77"
(15 x 18 x 4.5 cm)
 Size:
W 6.3" x D 8.66" x H 2.95"
(16 x 22 x 7.5 cm)

Weight:
1.25 lbs (0.57 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
13.85 lbs (6.28 kg)
11 VPDS-11T Size:
W 5.91" x D 7.48" x H 1.77"
(15 x 19 x 4.5 cm)
 Size:
W 6.3" x D 8.66" x H 2.95"
(16 x 22 x 7.5 cm)

Weight:
1.40 lbs (0.64 kg)		 Size:
W 9.45" x D 15.55" x H 13.78"
(24 x 39.5 x 35 cm)

Weight:
15.34 lbs (6.96 kg)
15 VPDS-15T Size:
W 5.91" x D 9.1" x H 1.77"
(15 x 23 x 4.5 cm)
 Size:
W 7.9" x D 9.9" x H 2.95"
(20 x 25.2 x 7.5 cm)

Weight:
1.76 lbs (0.80 kg)		 Size:
W 11" x D 16.54" x H 15.75"
(28 x 42 x 40 cm)

Weight:
18.4 lbs (8.35 kg)

*Packaging includes: SATA Cable(s), User Manual, and Installation Guide.
