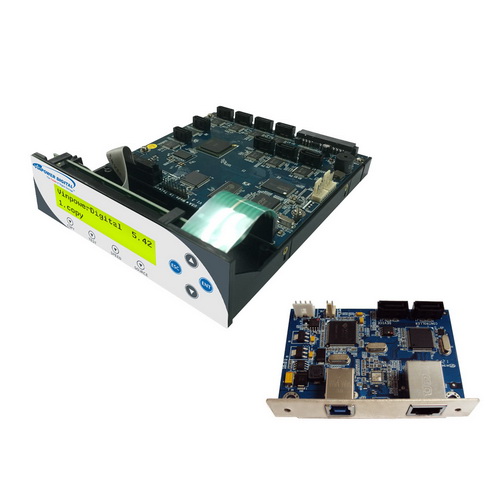

Networkable Blu-ray/DVD/CD Stand-Alone Duplicator Controller

Description

Vinpower Digital offers the first of its kind Network Controller. The Network controller allows image files to be transferred to the duplicator through any PC’s on a given network. This allows users to store and make quick copies from data stored on any PC on a network without the hassle of creating the master discs and taking that disc to the duplicator every time they need to make copies.

The Network controller offers all the same features and capabilities as our standard duplication controllers. It copies all formats of CD, DVD, & Blu-ray discs providing the best copy compatibility with nearly all makes of drives and media. Plus with the optional add on LightScribe printing capability, every duplicator with a LS capable Vinpower Controller can be an instant publishing system.

In addition, these models are available with Blu-ray duplication capability standard, and the option to add LightScribe labeling capability as well for an instant LightScribe publishing system.



Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Transfer files from any PC within an internal Network directly to the duplicator:
    Connect the duplicator to the company’s internal network by LAN/Ethernet connection and transfer the image or file(s) that need to be duplicated directly to the duplicator. No longer need to burn a master disc to initiate the duplication process.
  3. Load and Copy Supported:
    Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive
  4. Continuous Hard Drive Partitioning*:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  5. Industry leading 256MB buffer memory *:
    Keeps all drives burning without pausing (known as buffer underrun) for the most stable and reliable high speed duplication - The higher the memory buffer the less likely to encounter buffer underrun errors.
  6. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  7. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  8. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request. (Chinese available upon request)

Additional Features:

  1. AutoCopy feature:
    Fast duplication without pressing any buttons.
  2. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  3. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  4. Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Fast Key Support:
    4 fast keys for faster operations.
  7. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  8. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  9. Selectable CD & DVD burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  10. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  11. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  12. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  13. Supports both Disk-at-Once and Track-at-Once modes
  14. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  15. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  16. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  17. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.
**Available only on specific models.

Model
Vinpower Digital Networkable Blu-ray/DVD/CD Tower Duplicator Controller
Operating Type
Stand-alone with Network Connectivity
Target
1~15
Internal Interface
SATA
Auto Counter
Yes
Language Support
English, Spanish, French, German, Italian, Japanese, and more(Chinese available upon request)
Hard Drive Support
All SATA format Hard Drive (Hard drive is required on each tower)
Buffer Memory
Up to 256MB
Display
20 x 2 LCD
Account Management
32 users (Standard License) or 64 users (Premium License)
Network Connectivity
Requirements


Network Port: RJ-45 x 1
Network Speed: 10/100Mbits
Additional Ports: USB 2.0
OS Support: Windows 2000, XP, Vista 32 Bit
Partition Naming
Up to 14 Characters Per Partition
Recommended Supported
Drives












Sony DVD/CD Writer
- SONY BWU-100A Blu-Ray capable drive*

PANASONIC Drive DVD/CD Writer
- Panasonic SW-5583 Blu-Ray capable drive*

LG Blu-ray/DVD/CD Writer
- LG GGW-H20L Blu-Ray capable drive*

PIONEER Drive DVD/CD Writer
- PIONEER BDR-101A Blu-Ray capable drive*

PLEXTOR B900A Blu-Ray capable drive*

Additionally supports most all other brands
Supported Copy Speed
Copy speed depends on the writer drive used. The controller capable of achieving all listed drive speeds**.
Formats Supported












BD-ROM, BD-R, BD-RE
BD-R Double Layer , BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable
Yes
Burn Proof Support
Yes
Operating Humidity
20% ~ 80%
Temperature Extremes
40°C (104°F) / 5°C (41°F)
Regulations
FCC, CE, RoHS
Manufacture
Vinpower Digital


Target MPN Actual Size Single Packing 10 Pack
1 VPDS-NET-1T Size:
W 7" x D 5 7/8" x H 1 5/8"
(17.8 x 14.9 x 4.2 cm)
 Size:
W 9" x D 6 3/4" x H 2 4/8"
(22.8 x 17.1 x 6.4 cm)

Weight:
1.3 lbs (0.60 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
15 lbs (6.9 kg)
3 VPDS-NET-3T Size:
W 7" x D 5 7/8" x H 1 5/8"
(17.8 x 14.9 x 4.2 cm)
 Size:
W 9" x D 6 3/4" x H 2 4/8"
(22.8 x 17.1 x 6.4 cm)

Weight:
1.5 lbs (0.69 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
17 lbs (7.8 kg)
7 VPDS-NET-7T Size:
W 7 1/2" x D 5 7/8" x H 1 5/8"
(19 x 14.9 x 4.2 cm)
 Size:
W 9" x D 6 3/4" x H 2 5/8"
(22.8 x 17.1 x 6.7 cm)

Weight:
1.9 lbs (0.87 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
21 lbs (9.5 kg)
11 VPDS-NET-11T Size:
W 7 1/2" x D 5 7/8" x H 1 5/8"
(19 x 14.9 x 4.2 cm)
 Size:
W 9" x D 6 3/4" x H 2 5/8"
(22.8 x 17.1 x 6.7 cm)

Weight:
2 lbs (0.96 kg)		 Size:
W 14 1/8" x D 13 1/8" x H 10"
(35.9 x 33.3 x 25.4 cm)

Weight:
24 lbs (10.5 kg)
15 VPDS-NET-15T Size:
W 9 1/8" x D 5 7/8" x H 1 5/8"
(23.2 x 14.9 x 4.2 cm)
 Size:
W 9 7/8" x D 8" x H 2 7/8"
(25.1 x 20.3 x 7.3 cm)

Weight:
3 lbs (1.41 kg)		 Size:
W 20 1/2" x D 15 1/8" x H 17"
(52 x 38.4 x 43.2 cm)

Weight:
64 lbs (29.1 kg)


*Packaging includes: SATA Cable(s), User Manual, and Installation Guide.
